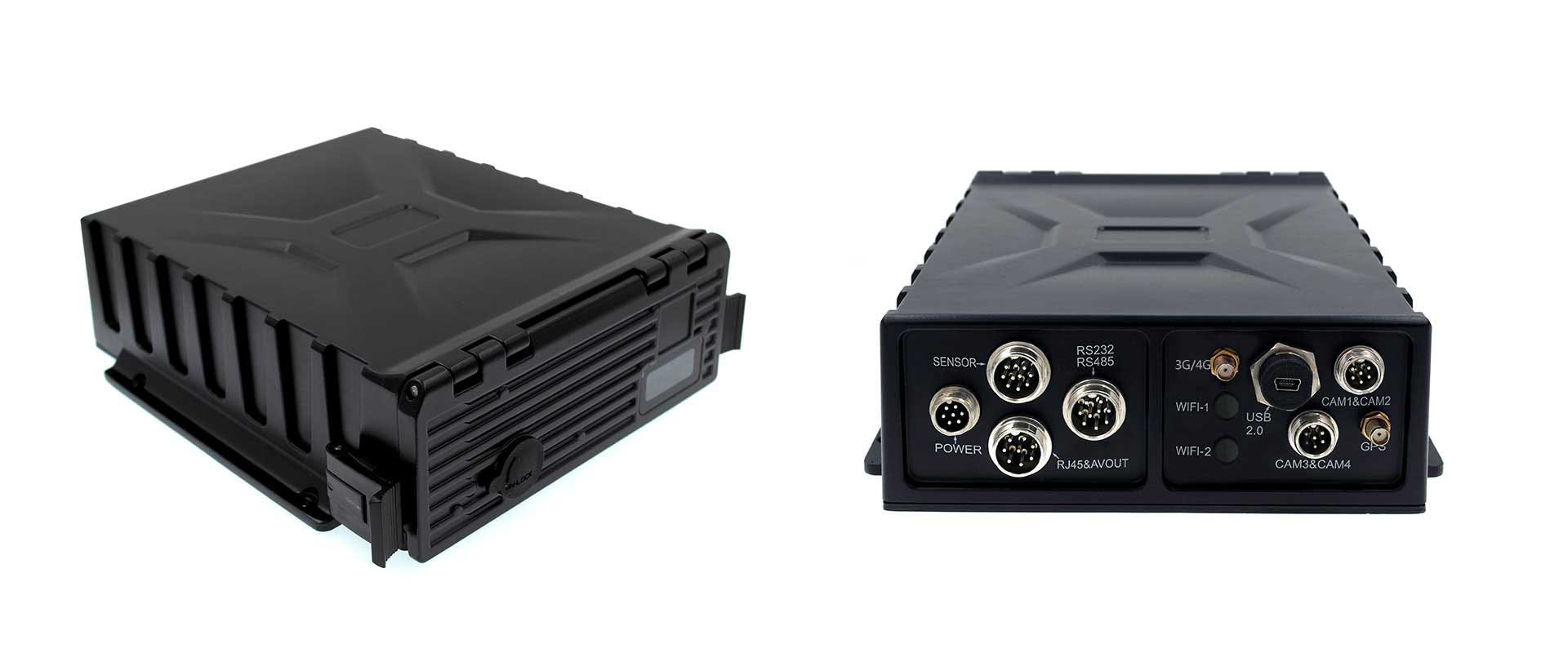

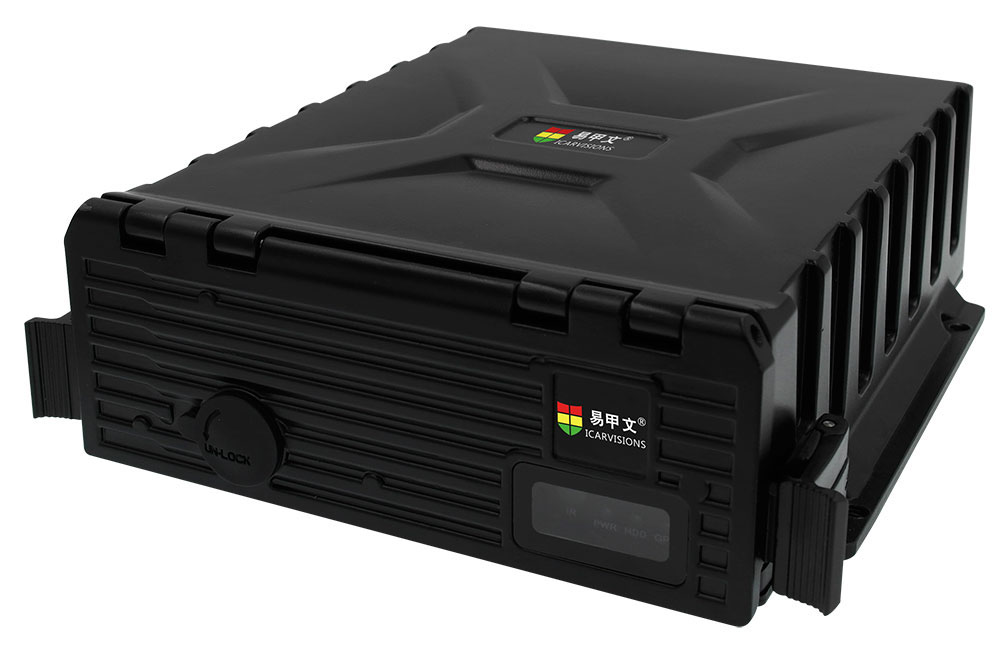

Mobile DVR Model: JH6S-4HD-GFN V2 (GPS+4G)

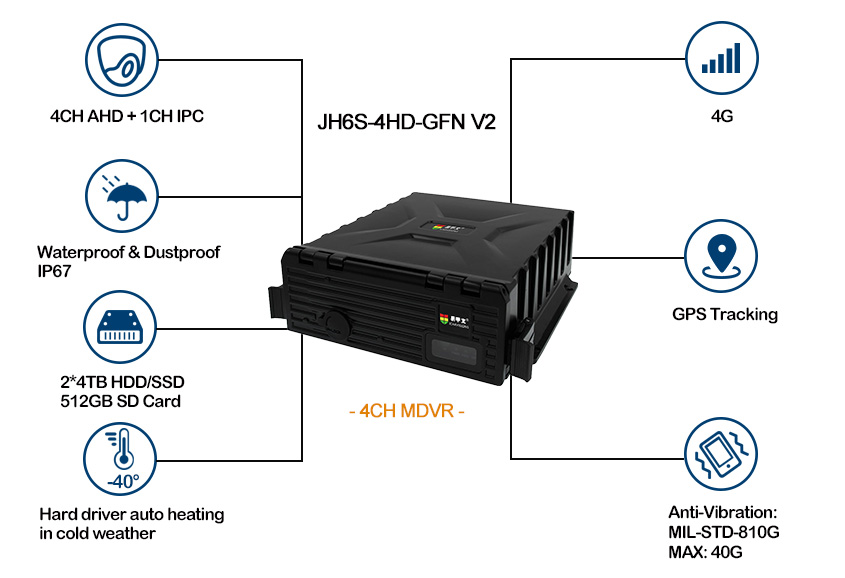

Product Features:
Waterproof & Dustproof IP67
4 x 1080P/720P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P)
Built-in 1 x POE(12V) Ethernet Port
accept HDD/SSD up to 4 TB Storage, and 1 SD card (up to 256GB) for backup（at 3G/4G/Wi-Fi model option）
Internal G-Sensor, with GPS, 4G
Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard )
Hard drive automatic heating startup in -40℃ weather
On board UPS 8 seconds delay power-off for data protection
Operating temperature -40℃ ~ +80℃
8V-36V wide voltage power supply
Product Specification
| Model | |
| JH6S-4HD-GFN | |
| System | |
| Language | English / Chinese |
| Operation Interface | Graphical User Interface（OSD menu） |
| Password Security | 2 Levels: Administrator & User |
| Video | |
| Video Input | Supports 4 channels 1080P AHD camera Video input |
| Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input | |
| Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input | |
| Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input | |
| Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input | |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 8pin AV-OUT Port) |
| Video Display | Single picture, 1~5 pictures |
| Signal System | PAL / NTSC ( PAL@125 frame 720P/sec; NTSC@150 frame 720P/sec ) |
| Image Compression | |
| Audio | |
| Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 8pin AV-OUT Port) |
| Record Format | Synchronized A/V recording |
| Recording & Storage | |
| Image Resolution | CIF / HD1 / D1 / 960H / 720P / 1080P optional |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, |
| HD1/D1: 2048Kbps ~ 400Kbps, | |
| 960H: 2048Kbps ~ 400Kbps, | |
| 720P: 4096Kbps ~ 400Kbps | |
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | |
| Audio Bit Rate | 40Kbps |
| Storage | Up to 4TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） |
| Alarm | |
| Alarm Input | 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 2 Channel, 12V output |
| Communication Ports | |
| RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 2 Port for communication or data usage |
| CAN | 1 Port,CAN-H and CAN-L |
| RJ45 Network | 1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P |
| USB | 2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional. |
| Wireless Communication* | |
| 3G/4G* | Supported |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n/ac optional |
| GPS* | |
| Int'l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | |
| Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates |
| Software | |
| PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. |
| Software Upgrade | |
| Local or Remotely | Upgrade through the front USB3.0 or remotely via IVMS platform |
| Voltage Input | |
| +8V~+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage |
| Voltage Output | |
| 12V | 12V (+/-0.2V) , Max 3A |
| ACC Detection | |
| ≤4V | Power-off |
| ≥6V | Power-on |
| Video Input Resistance | |
| 75Ω | 75Ω |
| Video Output Voltage | |
| 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | |
| <1V | Low voltage trigger |
| >5V | High voltage trigger |
| Operational Temperature | |
| -40℃～80℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | |
| 187*205*65mm | |
Product Description
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.

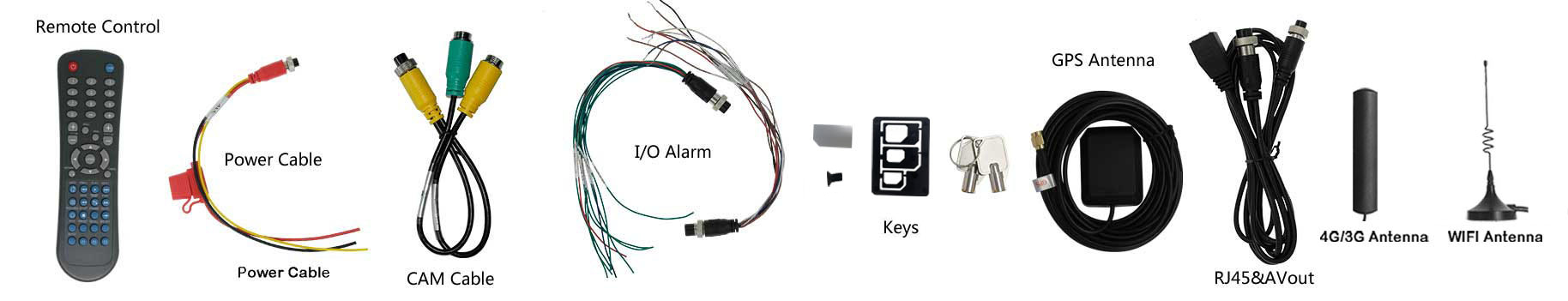

Accessories
Order model
with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
| Order Model | Description ( Module optional ) |
| JH6S-4HD-GFN V2 | GPS+4G |
| JH6S-4HD-GWW V2 | GPS+3G+WiFi |
| JH6S-4HD-GWN V2 | GPS+3G |
| JH6S-4HD-GNW V2 | GPS+WiFi |
| JH6S-4HD-GNN V2 | GPS |
| JH6S-4HD-NNN V2 | Recording Only |
| JH6S-4HD-GFW V2 | GPS+4G+WiFi |
Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:
It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Spec Sheet Download
| Title | Type | Download |
| JH6S-4HD V2 MDVR Spec Sheet |
