IP67 Waterproof 4CH Mobile DVR for car

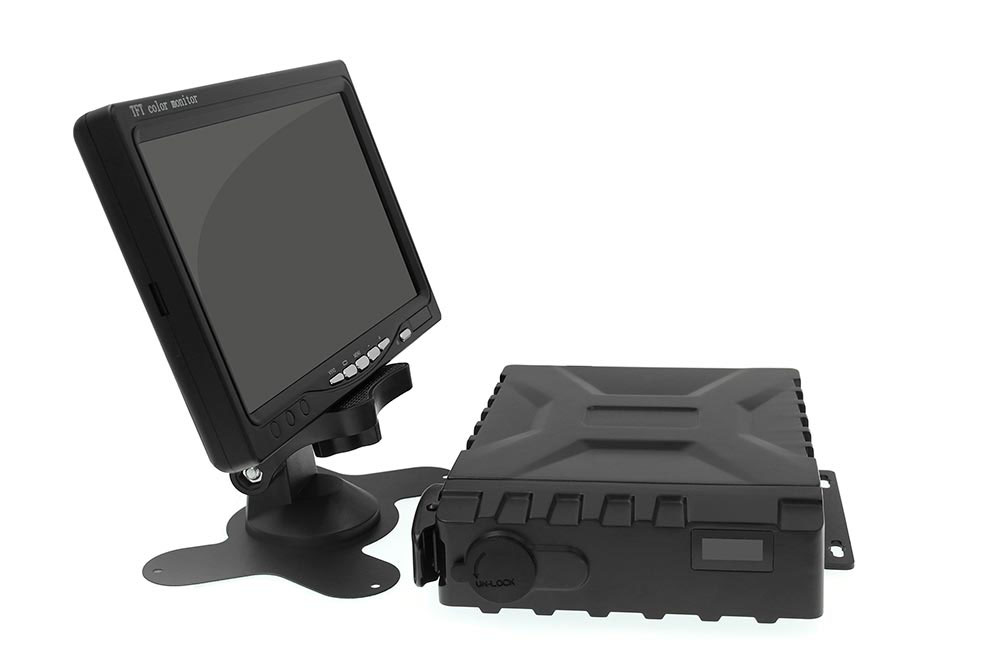

IP67 Waterproof 4CH Mobile DVR for car Picture1

Mobile DVR Model:JH0-GFN (GPS+4G)

Product Features:

4 CH SSD MDVR (Waterproof IP67, Hand-sized)

  • Waterproof & Dustproof IP67

  • 4 x 720P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P / 1080P)

  • Internal G-Sensor, with GPS, 3G / 4G, Wi-Fi (5.8 Ghz ) optional

  • storage unlimited with  2.5'' SSD + SD Card slot×1 (up to 128GB)

  • On board UPS 8 seconds delay power-off for data protection

  • 8V-36V wide voltage power supply

  • Dimensions :146*155*38mm

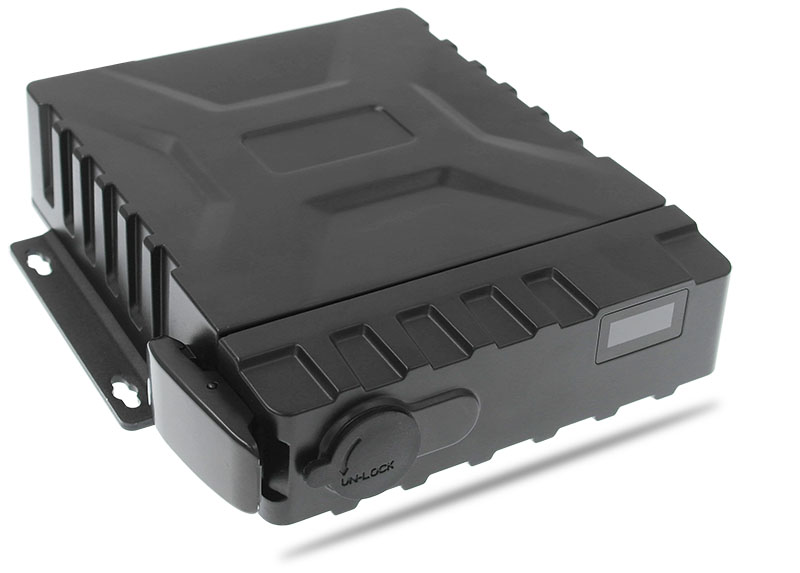

IP67 Waterproof 4CH Mobile DVR for car Picture2

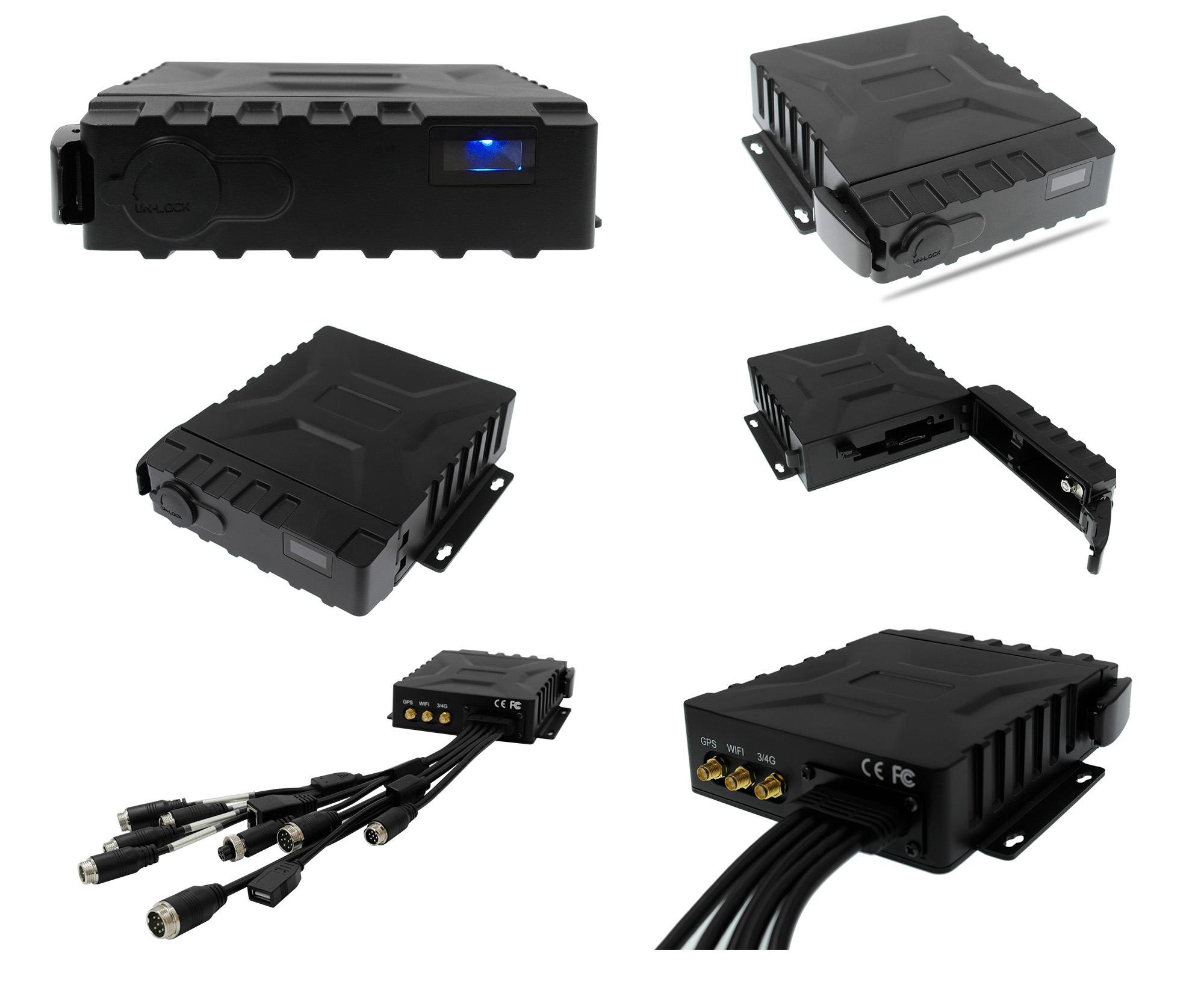

IP67 Waterproof 4CH Mobile DVR for car Picture3

Product Specification

Model
JH0-GFN
System
Language English  / Chinese
Operation Interface Graphical User Interface(OSD menu)
Password Security 2 Levels: Administrator & User
Video
Video Input A:Supports 4 channels CIF/HD1/D1/960H camera Video input
B:Supports 4 channels 720P AHD camera Video input
C:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
D:Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD Video input
Video Output 1 Channels (Rear Panel on RJ45&AV-OUT Port)
Video Display Single picture, 1~5 pictures
Signal System PAL / NTSC ( PAL@125 frame 720P/sec; NTSC@150 frame 720P/sec )
Image Compression
Audio
Audio Input 4 Channels
Audio Output 1 Channels
Record Format Synchronized A/V recording
Recording & Storage
Image Resolution  CIF / HD1 / D1 / 960H / 720P / 1080P optional
Video Coding ISO14496-10 Industry Standard
Video Bit Rate CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H:  2048Kbps ~ 400Kbps,
720P: 4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate 40Kbps
Storage 1 SSD and 1 SD card (at 3G/4G/WIFI model option)
Alarm
Alarm Input 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output 2 Channel, 12V output
Communication Ports
RS485 1 Port for PTZ control or Data Device usage
RS232 1 Port for communication or data usage
RJ45 Network 1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P
USB 1 Ports for USB 2.0, download video files & upgrade firmware
Wireless Communication*
3G/4G* Supported
Wi-Fi* Internal Wi-Fi 802.11b/g/n/ac optional
GPS*
Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS Wireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input
+8V~+36V 8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V 12V (+/-0.2V) , Max 3A
ACC Detection
≤4V Power-off
≥6V Power-on
Video Input Resistance
75Ω 75Ω
Video Output Voltage
2Vp-p 2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port
<1V  Low voltage trigger
>5V  High voltage trigger
Operational Temperature
-25℃~80℃ Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
146*155*38mm

Product Description

JH0 is a 4 channel Mini Mobile DVR which can connect and record simultaneously up to 4 cameras and an ethernet port to connect a forward facing IP camera. Footage records onto unlimited 2.5''SSD hard drives with backup recording onto 1 128GB SD card. With built-in GPS, this high capacity DVR will record the vehicle's location and driving route as well as camera footage to provide the full picture from what's happening on the road. This DVR is Perfect protect your data well with waterproof & dustproof IP67.

This DVR has live video remote viewing. This allows the DVR to connect to a WiFi hotspot in your vehicle. This model is compatible with jetpacks from all major carriers. Perfect for fleet tracking (can be used as a GPS tracker) and fleet management this DVR allows you to easily view and download footage even while the vehicle is on the road!

The user can also use a SIM Card for live remote viewing. This model can also be connected to a WiFi hotspot.

The JH0 Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP<icarview> is available for mobile phones in Android and iOS system.

Product Images

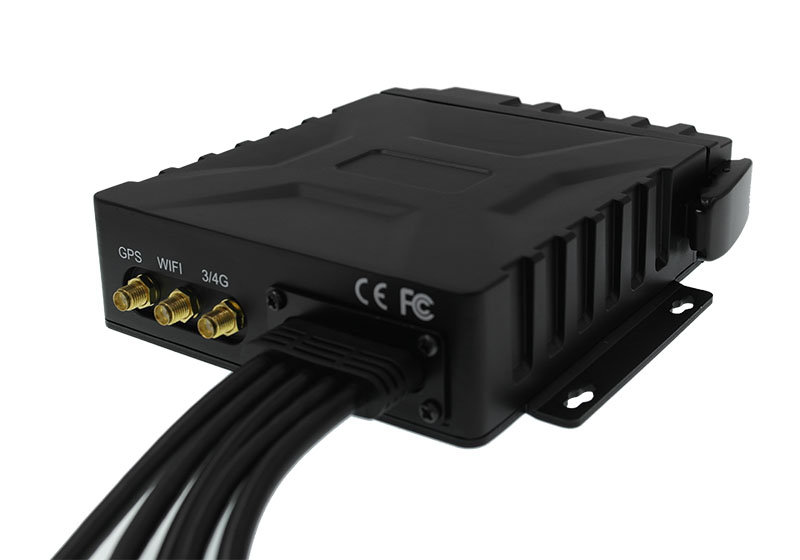

IP67 Waterproof 4CH Mobile DVR for car Picture4

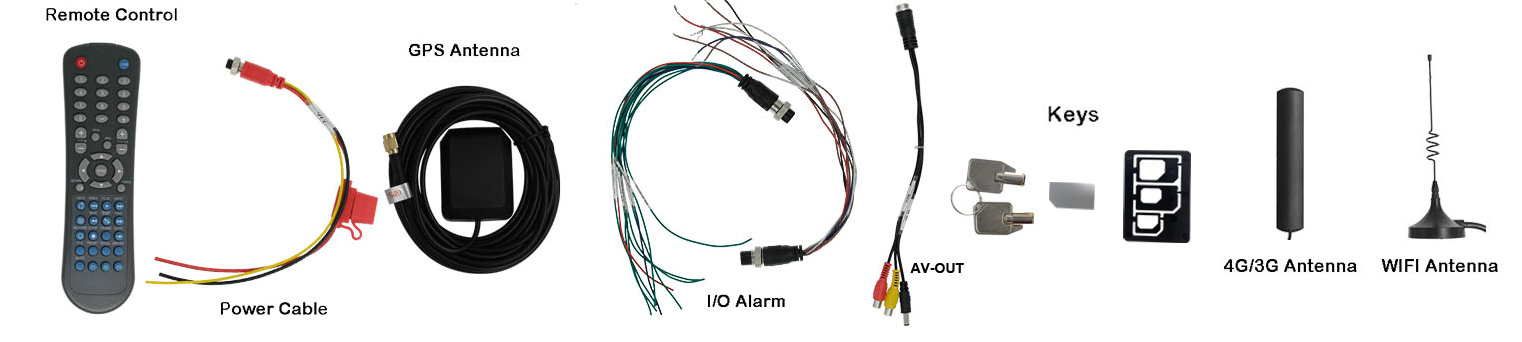

Product Accessories

IP67 Waterproof 4CH Mobile DVR for car Picture5

Related solutions

Vehicle monitoring System Solution For Police Car

Order model

  • with 3G / 4G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking

  • 3G / 4G: For real-time video and monitoring

  • Wi-Fi: For automatically downloading video file

  • Order Model Description ( Module optional )
    JH0-GFW GPS+4G+WiFi
    JH0-GFN GPS+4G
    JH0-GWW GPS+3G+WiFi
    JH0-GWN GPS+3G
    JH0-GNW GPS+WIFI
    JH0-GNN GPS

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

    It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:car,ambulance,police-car,School Bus,taxi,truck,etc.

    Spec Sheet Download

  • Title Type Download
    JH0-GFN Mobile DVR Spec Sheet pdf
