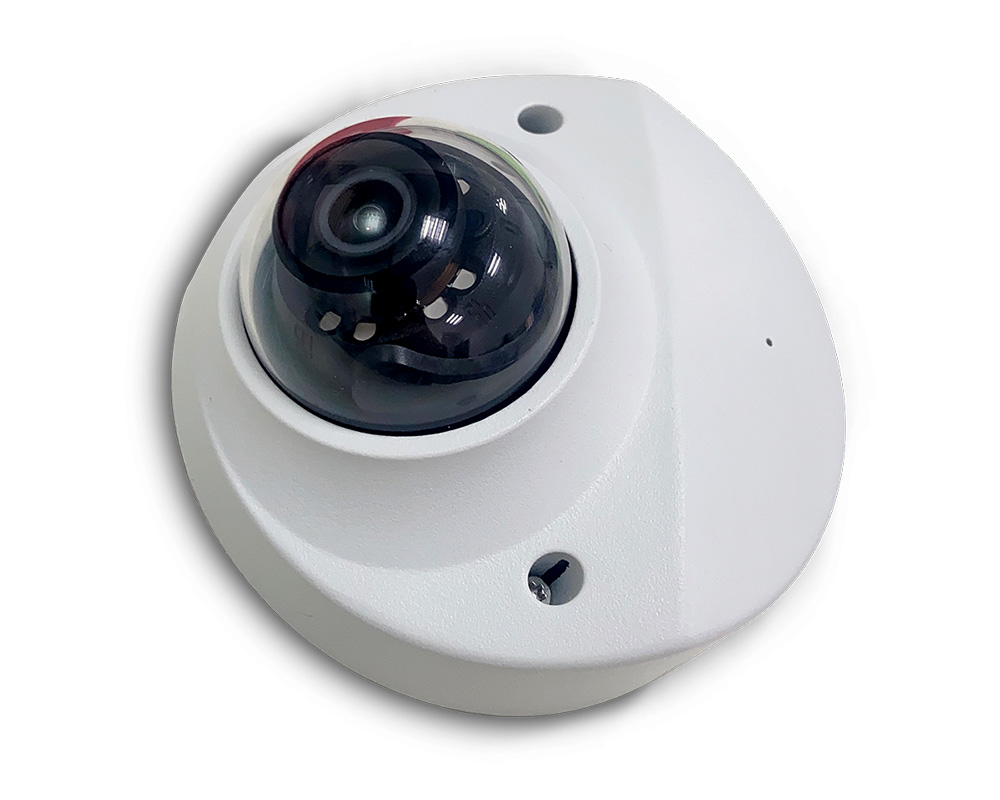

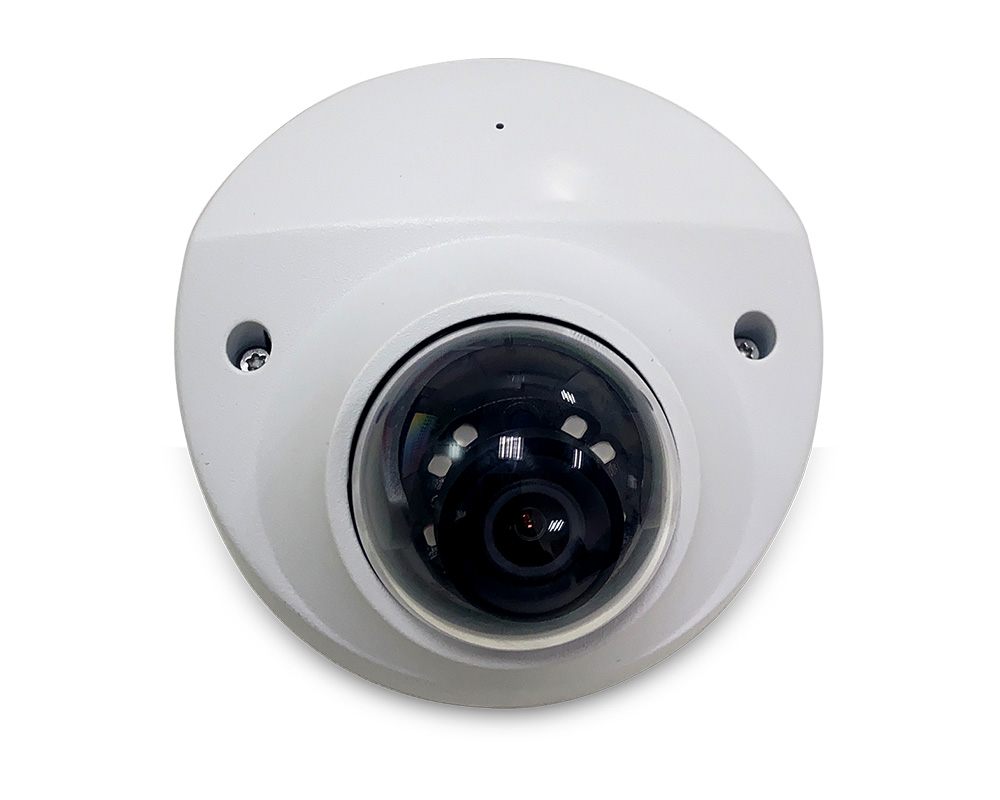

2021 Passenger Counting Camera

2021 Passenger Counting Camera Picture1

Product Features:

  • 1/2.8” 2 Megapixel progressive scan CMOS

  • H.265 & H.264 triple-stream encoding

  • 25 / 30 fps @1080P (1920×1080)

  • WDR (120dB), Day / Night (ICR), 3DNR, AWB, AGC, BLC

  • Multiple network monitoring: Web portal and IVMS Client.

  • Max. IR LEDs Length 50m

  • Support DC12V power

  • Support people Counting

Product Introduction

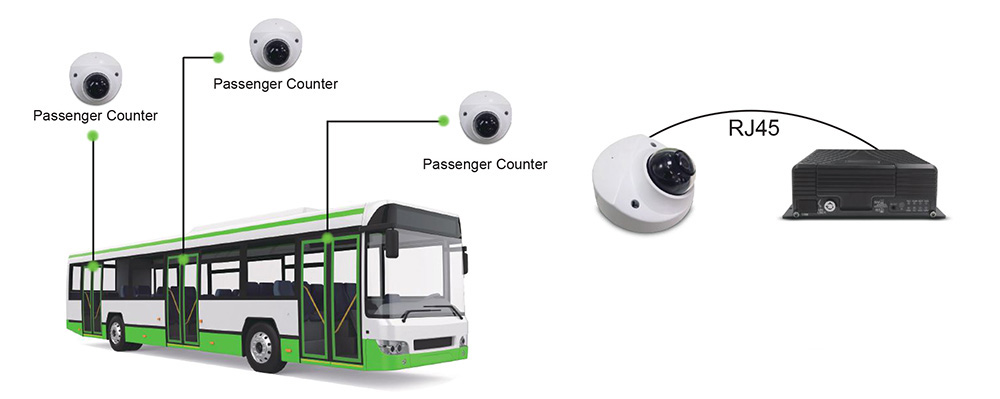

The passenger counter camera is specially designed for the bus. Enable the passenger flow statistics with its high-standard design, it can also meet the requirements of the vehicle so this camera can withstand vibration, shock and wide-range temperature fluctuations along with other harsh conditions.


This product can be used in bus, coach, subway, train, ship, shopping mall, and other places where passenger flow statistics are required. It can be easily installed on doors, roofs, walls, ceilings and other surfaces.

Product Specifications

Image Sensor

1/2.8”   2 Megapixel progressive scan CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

1024MB / 128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual, 1/3 ~ 1/100000s

Minimum Illumination

0.003Lux / F2.0 ( Color,1/3s,30IRE)

0.02Lux / F2.0 ( Color,1/30s,30IRE)

0Lux / F2.0 (IR on)

S/N Ratio

More than 45dB

IR Distance

Distance up to 50m (164ft)

IR On/Off Control

Auto/Manual

IR LEDs

8

Lens

Lens Type

Fixed

Focal Length

2.8mm (3.6mm;6mm;8mm;12mm)

Max. Aperture

F2.0

Angle of View

H: 110 ˚ (89.5°)(52.8°)(39.7°)(25.7°)

V: 60˚ (50˚)( 30°)(22°)(14.4°)

Artificial Intelligence

People Counting

Support Line crossing

Video

Compression

H.265 / H.264H / H.264 / H.264B / MJPEG (Sub   Stream)

Smart Codec

Support H.265 + H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/   720P(1280x720)/ D1(704×576/704x480)/ CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Sub Stream 2: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264H:32Kbps ~ 15104Kbps

H.6Kbps~ 15104Kbps

Day/Night

Auto (ICR) / Color / B/W

Size

2021 Passenger Counting Camera Picture22021 Passenger Counting Camera Picture3
