Product Features

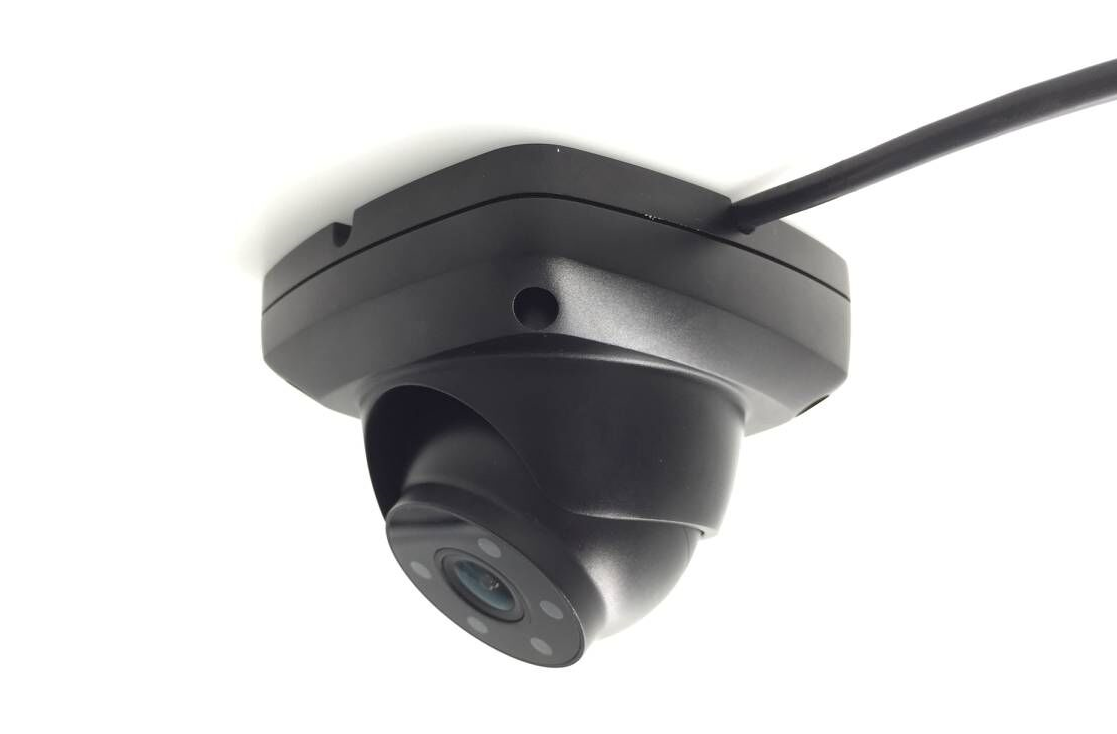

NVP2431H + 1/3” CMOS AR0130 image sensor
Metal-cased with standard fixed lens;
Millions of high-resolution(1.3 Mega pixel);
Audio fuction optional;
Support D-WDR,Video effects can be optimized;
Easy installation to ceiling or wall;
Support 12V DC ±10%,Low power consumption;
Product Specification

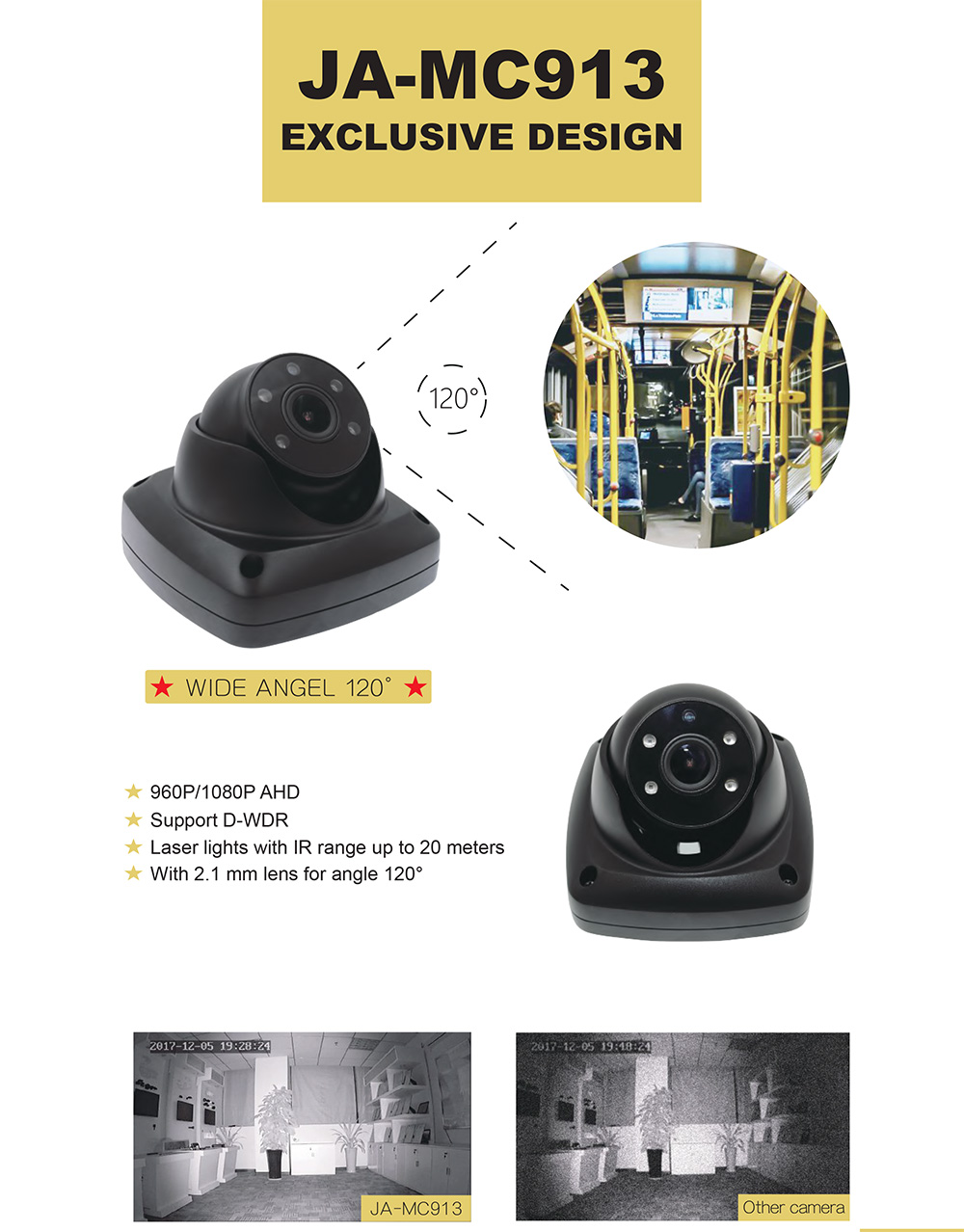

| Model | JA-MC913 |
| Image Sensor | NVP2431H + 1/3” CMOS AR0130 |
| TV System | PAL/NTSC |
| HD-Resolution | 1.3 Mega pixel |
| Lens optional | f2.1 / 2.8 mm |
| Effective Pixel Arrey | 1280H x 960 V |
| Min illumination | 0.01Lux @(F1.2,AGC ON) |
| S/N Ratio | More than 60 dB(AGC Off) |
| WDR | D-WDR |
| IR | 4PCS IR LED |
| Infrared LED Range | 20m |
| Audio fuction | optional |
| horizontal angle of view | 2.8mm 90° 2.1mm 120° |
| Tilt Adjusting | 0-90 Degree |
| Power Supply | 12V DC ±10%,210mA |
| Dimensions | 99 x 86x 86 mm |
| Net Weight | 250 g |
| Water Proof | optional |
| Operational Temperature | -25 ~ +60 ° C |
| Operational humidity | 20 ~ 80% |
| vedio interface | Aircraft Round Connector Plug |
