IVMS Server for Intelligent Vehicle Monitoring System Server

2025 IVMS PC Server End Introduction

IVMS System Servers: Database Management Servers + IVMS Servers.

Database Management Servers (4)

IVMSMONGODB: Stores trajectory data, alarm information, etc.

IVMSMySQL: Stores basic server data such as user and vehicle information.

IVMSMYSQLBackupSvr: Used for backing up server data.

IVMSMYSQLWatchDog: Monitors server operation status.

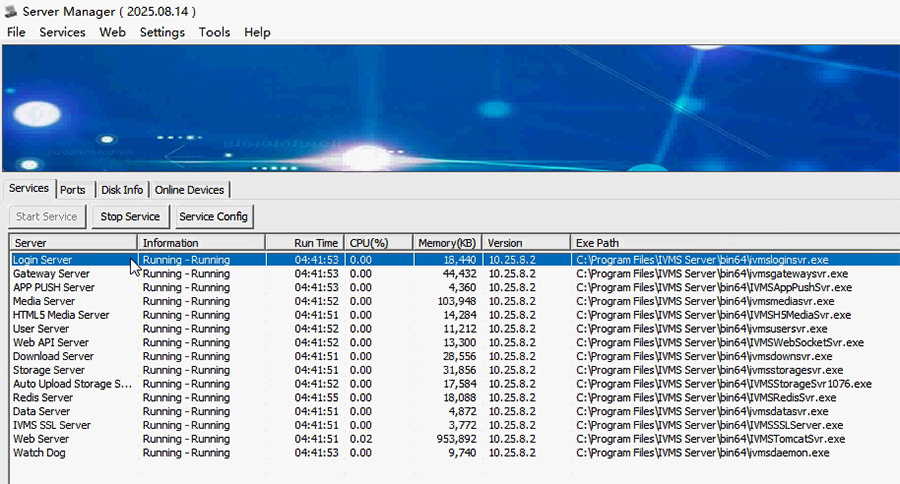

IVMS Servers (15)

• Login Server: Saves the online relationship between users and devices, and the status of each server module. It is also used to register various servers, coordinate and manage registered servers, allocate user clients, configure terminal management servers, allocate gateway servers for MDVR devices, perform user management, and realize server load balancing.

• Gateway Server: Provides vehicle access. It is responsible for receiving and parsing device location, status, alarm and other information, distributing it to other servers, establishing a communication link between the VDVR device and the server, and sending vehicle location and status information through this link.

• Media Server: Provides media data forwarding functions, including audio and video, intercom, remote monitoring, remote snapshot, parameter configuration, search, and forwarding of downloaded data. It also provides video playback's real-time preview and audio and video streaming services.

• HTML5 Media Server: Mainly responsible for web-side storage server's video playback and download.

• User Server: Provides remote client access. It is also responsible for user login, device information download, and tracking download.

• APP PUSH Server: Responsible for pushing alarm data to the APP.

• Web API Server: Sends device information forwarded by the gateway to web pages and provides communication between browsers and servers.

• Download Server: Used for setting up automatic upload of recordings and images to the server. When within the range of a designated access point, the WIFI-enabled VDVR will automatically upload video files to this server.

• Storage Server: Used to store pictures and video capture to reduce costs. It also executes recording schedule tasks, snapshot schedule tasks, and handles alarm files and video records automatically uploaded by download device alarms.

• Auto Upload Storage Server: Supports AI alarm upload, etc.

• Redis Server: Reduces data access latency and improves efficiency.

• Data Server: Saves GPS status and historical trajectories.

• IVMS SSL Server: Supports server domain name configuration and SSL certificate loading.

• Web Server: Provides GIS electronic map information, offers links to the IVMS backend control center and front-end management system login. It also allows configuration of various server functions and report query via web pages.

• Watch Dog: Monitors server operation status.

Users have the option of deploying one or two of the above-mentioned 15 types of functional servers (e.g., Login Server, multiple Gateway Servers, multiple Media Servers, and multiple User Servers) to provide Mobile DVR and Remote Client Services, as well as support features including GPS status tracking, video services (such as real-time preview and playback) and alarm information processing.
