Hard disk 4G Real-time Security Mobile NVR

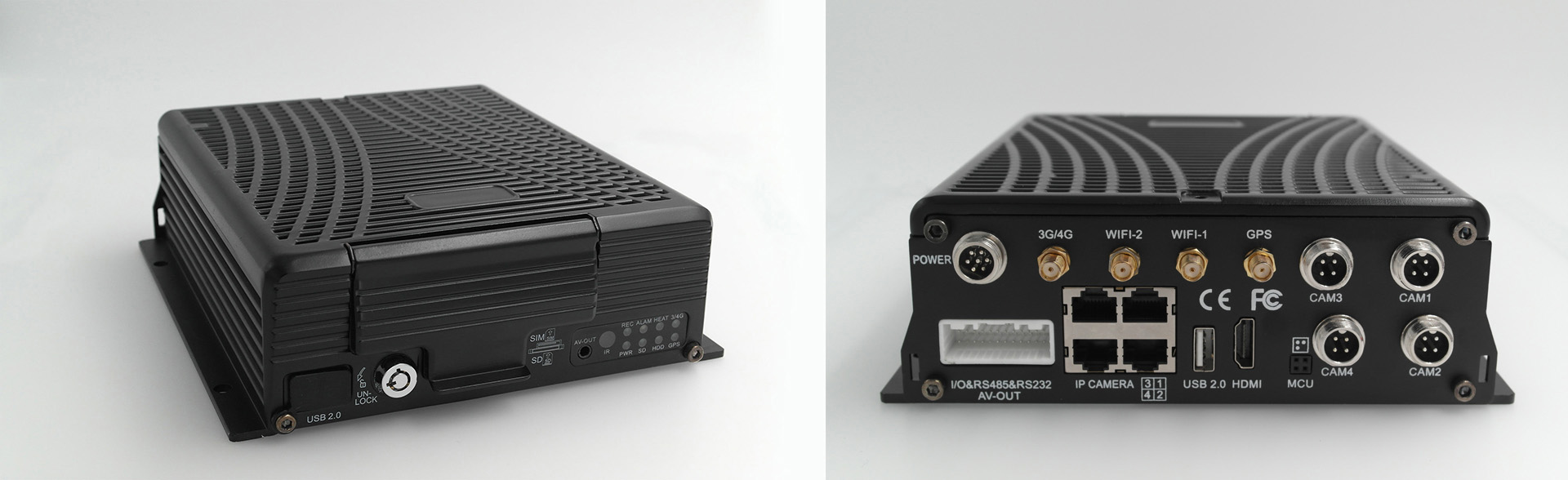

Hard disk 4G Real-time Security Mobile NVR Picture1

Mobile NVR Model: JH4-HYBRID-GFW (GPS+4G+WIFI)

Product Features:

  • 4 x IPC(720P/1080P) + 4 x 720P AHD / 960H / D1 / HD1 / CIF , support 960P AHD camera

  • Built-in Switch 4 x POE(12V) Ethernet Ports

  • HDMI Video Output

  • accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)

  • Internal G-Sensor, with GPS,  4G FDD and Wi-Fi (5.8 Ghz)

  • 2 WIFI Antennas (download speed up to 3Mb/s)

  • Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)

  • Hard drive automatic heating startup in cold weather

  • On board UPS 8 seconds delay power-off for data protection

  • Operating temperature -40℃ ~ +80℃

  • 8V-36V wide voltage power supply

  • View and download live footage while the vehicle is on the road

  • Mobile Access - View footage from vehicle live on mobile device

  • Military-Grade Vibration Rating


Hard disk 4G Real-time Security Mobile NVR Picture2

Product Specification

Model
JH4-HYBRID-GFW
System
LanguageEnglish  / Chinese
Operation InterfaceGraphical User Interface(OSD menu)
Password Security2 Levels: Administrator or User
Video
Video InputSupports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Supports 4 channels 720P/ 2 channels 1080P IP camera Video input
Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
Supports 4-CH 720P IPC + 4-CH 720P AHD/960H/D1/CIF Video input
Supports 2-CH 1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input
Video Output1 each HDMI (max. 1080P), 2 CVBS (Analog); 1 each 3.5mm Jack on Front Panel and one connection on the 24 pin I/O port
Video DisplaySingle picture, 1~8 pictures
Signal SystemPAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec )
Image CompressionH.264 Main profile
Audio
Audio Input4 Channels
Audio Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin connector)
Record FormatSynchronized A/V recording
Recording & Storage
Image Resolution CIF / HD1 / D1 / 960H / 720P / 1080P optional
Video CodingISO14496-10 Industry Standard
Video Bit RateCIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H:  2048Kbps ~ 400Kbps,
720P: 4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate40Kbps
StorageUp to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm
Alarm Input8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output1 Channel, 12V output
Communication Ports
RS4851 Port for PTZ control or Data Device usage
RS2322 Port for communication or data usage
RJ45 Network4 Ports of RJ45, For connection to an IP camera with maximum of 1080P
USB2 Ports of USB 2.0, the front is used to export record file. The rear panel is optional.
Wireless Communication*
3G*3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G*4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi*Internal Wi-Fi 802.11b/g/n/ac optional
GPS*
Int'l Standard GPSInternal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-SensorSupports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC PlaybackA/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMSWireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or RemotelyUpgrade through the front USB 2.0 or remotely via IVMS platform
Voltage Input
+8V~+36V8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V12V (+/-0.2V) , Max 3A
ACC Detection
≤4VPower-off
≥6VPower-on
Video Input Resistance
75Ω75Ω
Video Output Voltage
2Vp-p2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port
<1V Low voltage trigger
>5V High voltage trigger
Operational Temperature
-40℃~80℃Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x61mmIncluding Security Cover 248x184x61mm

Product Description

JH4-HYBRID-GFW is a mobile NVR designed for on-board vehicle recording which comes with remote live video viewing. This system is able to to connect to a WiFi hotspot in your vehicle. This model is compatible with jetpacks from all major carriers. Perfect for fleet tracking (can be used as a GPS tracker) and fleet management this NVR allows you to easily view and download footage even while the vehicle is on the road!


It has four ports to record up to four cameras simultaneously and 4 ethernet ports to connect four 1.3MP IP cameras. Footage records onto an included 2TB hard drive with backup recording onto 1 SD card with a total storage capacity of 128GB. Ideal for fleet management the JH4-HYBRID-GFW has military grade vibration and shock ratings.


The user may also use a SIM Card for live remote viewing. This model can also be connected to a WiFi hotspot.


The JH4-HYBRID-GFW Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.


Hard disk 4G Real-time Security Mobile NVR Picture3

Order model

  • with 3G / 4G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking

  • 3G / 4G: For real-time video and monitoring

  • Wi-Fi: For automatically downloading video file

Hard disk 4G Real-time Security Mobile NVR Picture4

  • Order Model Description ( Module optional )
    JH4-HYBRID-GNW GPS+WIFI
    JH4-HYBRID-GNN GPS
    JH4-HYBRID-NNN Recording Only
    JH4-HYBRID-GWN GPS+3G
    JH4-HYBRID-GWW GPS+3G+WIFI
    JH4-HYBRID-GFN GPS+4G
    JH4-HYBRID-GFW GPS+4G+WIFI

    Our rugged, high quality mobile NVRs are ideal for monitoring a wide range of vehicles:

    It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

    Our rugged, high quality mobile NVRs are ideal for monitoring a wide range of vehicles:car,ambulance,police-car,School Bus,taxi,truck,etc.

    Spec Sheet Download

  • Title Type Download
    JH4-HYBRID-GFW Mobile NVR Spec Sheet pdf
