This model is temporarily discontinued, click here to learn more NVRs

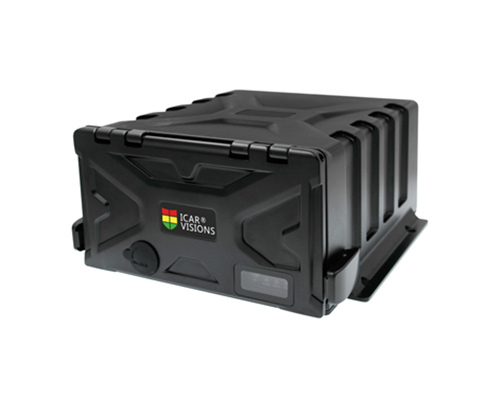

Mobile NVR Model: JH16-8NVR-GFW (GPS+4G+WIFI)

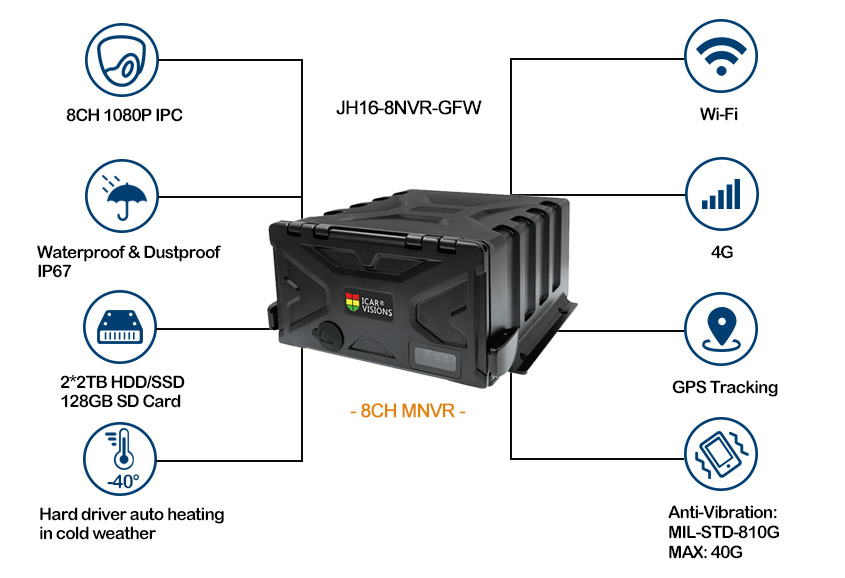

Product Features:
8 x 1080P IP Camera Video input
Waterproof & Dustproof IP67
Accept HDD/SSD up to 2* 4 TB Storage, and 1 SD card (up to 128GB) for backup（at 3G/4G/Wi-Fi model option）
Internal G-Sensor, with GPS, 4G and Wi-Fi (5.8 Ghz)
WIFI automatic download
Anti-Vibration and Anti-Shock ( MIL-STD-810G standard)
Hard drive automatic heating startup in -40℃ weather
Operating temperature -40℃ ~ +80℃
8V-36V wide voltage power supply
Product Specification
| Model | |
| JH16-8NVR-GFW | |
| System | |
| Language | English / Chinese |
| Operation Interface | Graphical User Interface（OSD menu） |
| Password Security | 2 Levels: Administrator & User |
| Video | |
| Video Input | Supports 8 channels 1080P IP camera Video input |
| Video Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 6pin AV-OUT Port) |
| Video Display | Single picture, 1~8 pictures |
| Signal System | PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec ) |
| Image Compression | |
| Audio | |
| Audio Input | 8 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 9pin AV-OUT Port) |
| Record Format | Synchronized A/V recording |
| Recording & Storage | |
| Image Resolution | CIF / HD1 / D1 / 960H / 720P / 1080P optional |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, |
| HD1/D1: 2048Kbps ~ 400Kbps, | |
| 960H: 2048Kbps ~ 400Kbps, | |
| 720P: 4096Kbps ~ 400Kbps | |
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | |
| Audio Bit Rate | 40Kbps |
| Storage | Up to 2*4TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） |
| Alarm | |
| Alarm Input | 7 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 2 Channel, 12V output |
| Communication Ports | |
| RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 2 Port for communication or data usage |
| USB | 2 ports. The front one is USB 3.0 to download video files & upgrade firmware; the rear panel one is USB 2.0 to connect with external device. |
| Wireless Communication* | |
| 3G/4G* | Supported |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional |
| GPS* | |
| Int'l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor | |
| Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates |
| Software | |
| PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. |
| Software Upgrade | |
| Local or Remotely | Upgrade through the front USB2.0 or remotely via IVMS platform |
| Voltage Input | |
| +8V~+36V | 8～36V DC Please check operational voltage of vehicle prior to the installation of the MNVR and its accessories to prevent possible damage |
| Voltage Output | |
| 12V | 12V (+/-0.2V) , Max 3A |
| ACC Detection | |
| ≤4V | Power-off |
| ≥6V | Power-on |
| Video Input Resistance | |
| 75Ω | 75Ω |
| Video Output Voltage | |
| 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | |
| <1V | Low voltage trigger |
| >5V | High voltage trigger |
| Operational Temperature | |
| -40℃～80℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration |
| Dimensions | |
| 203x208x93.5mm | |
Product Description
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.
Order model
with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
This model is temporarily discontinued, click here to learn more NVRs
| Order Model | Description ( Module optional ) |
| JH16-8NVR-GFW | GPS+4G+WIFI |
| JH16-8NVR-GWW | GPS+3G+WIFI |
| JH16-8NVR-GFN | GPS+4G |
| JH16-8NVR-GNW | GPS+WIFI |
| JH16-8NVR-GWN | GPS+3G |
| JH16-8NVR-GNN | GPS |
| JH16-8NVR-NNN | Recording Only |
Our rugged, high quality mobile NVRs are ideal for monitoring a wide range of vehicles:
It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Spec Sheet Download
| Title | Type | Download |
| JH16-8NVR Mobile NVR Spec Sheet |
