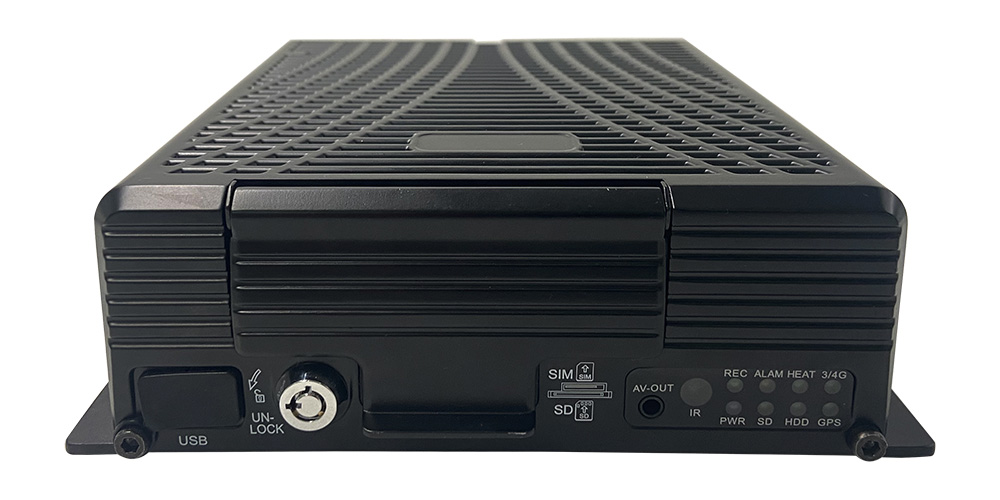

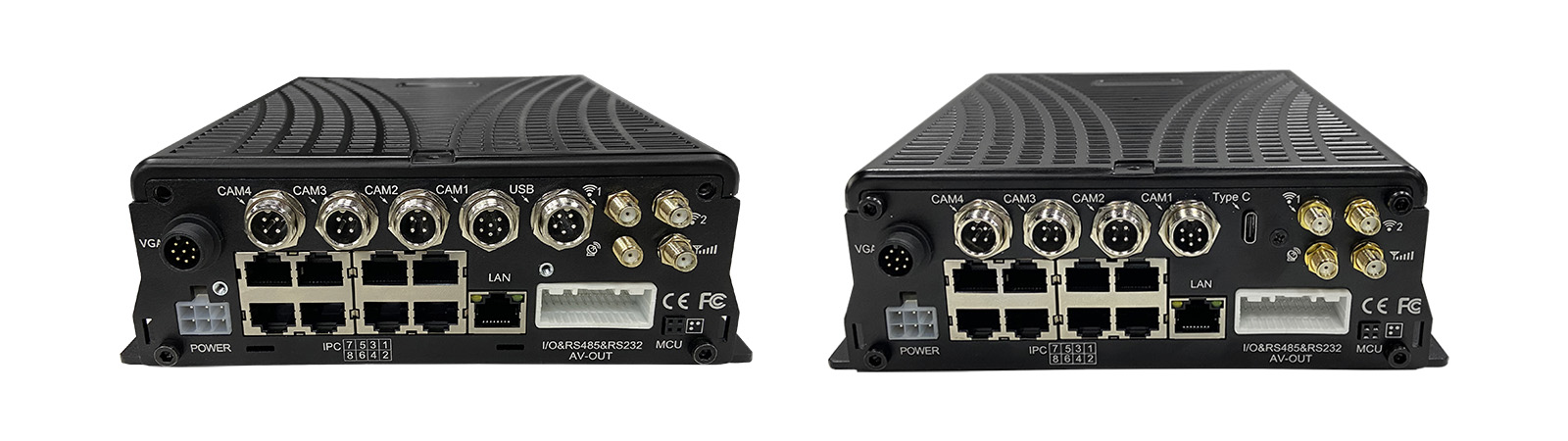

12CH AI MDVR with 4G/5G & GPS Tracking

MDVR Model: JH8-HYBRID V3 (GPS+4G/5G+WiFi)

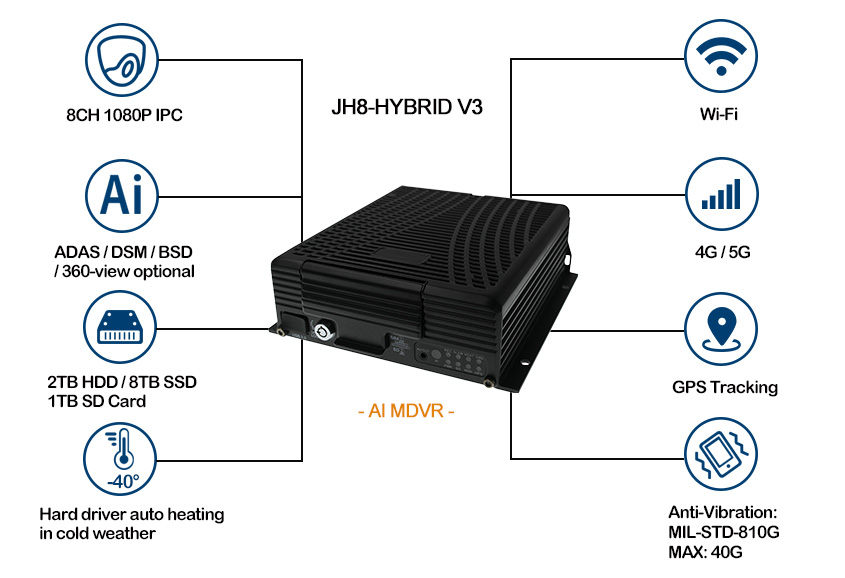

Product Features

• Support 8 channels 1080P IPC + 4 channels 1080P AHD

• Support H.265 /264

• Support 2.5" HDD (up to 2TB) or SSD (up to 8TB), additional SD card (up to 1TB)

• Multi-Stream Storage: Simultaneous recording of main & sub streams

• Support AI function ADAS / DSM / BSD  / 360-view optional

• Built-in 6-axis gravity sensor, to detect and trigger

• the alarm of rapid acceleration, harsh braking, crash and sharp cornering.

• Support AES-256 Encryption for video/audio data protection, TLS1.3 protocol for secure transmission

• Sleep mode, remote wakeup

• Operating temperature -40°C ~ +80°C

• 8V~36V wide voltage power supply

Product Description

The JH8-HYBRID V3 is a 12-channel MDVR designed for in-vehicle recording with remote live video streaming. It connects seamlessly to a WiFi hotspot or a SIM card for real-time viewing. Perfect for fleet tracking and management, this system doubles as a GPS tracker, allowing you to monitor and download footage while vehicles are on the move.

It supports 12 cameras, including 8 channels of 1080P IPC and 4 channels of 1080P AHD. Footage is stored on a 2.5" HDD (up to 2TB) or SSD (up to 8TB), with backup recording on an SD card (up to 1TB). Built for durability, the JH8-HYBRID V3 boasts military-grade vibration and shock resistance, ideal for fleet management.

The system also supports AI functions, including optional ADAS, DSM, BSD, and 360-view capabilities. Paired with the IVMS (Intelligent Vehicle Management Software), it enables comprehensive fleet monitoring, including real-time video and audio, GPS tracking, GEO-Fence, voice intercom, temperature monitoring, customizable alarms, driving route recording, PTZ control, fuel level detection, video search and download, and report generation. The APP <icarview> is available for Android and iOS for convenient mobile access.

AI function

• ADAS: Advanced Driver-Assistance Systems)

• DSM: Driver Status Monitoring

• FR: Face Recognition

• BSD: Blind Spot Dectection

• HOD: Hand-off Dectection

• AVM: Around View System(360-view)

Note: AI camera calibration is not supported on non-Wi-Fi models. To enable the calibration, a separate USB adapter can be purchased.

Applications

• City Buses & Coaches

• Double-Decker Buses

• Long-Haul Trucks

• Tanker Trucks

• Refrigerated Trucks

• Armored Police Vehicles

• Ambulances & Fire Trucks

• School Buses

• Airport Shuttles & Hotel Buses

• Heavy Dump Trucks

• Excavators & Loaders

• Cranes & Forklifts

• Garbage & Recycling Trucks

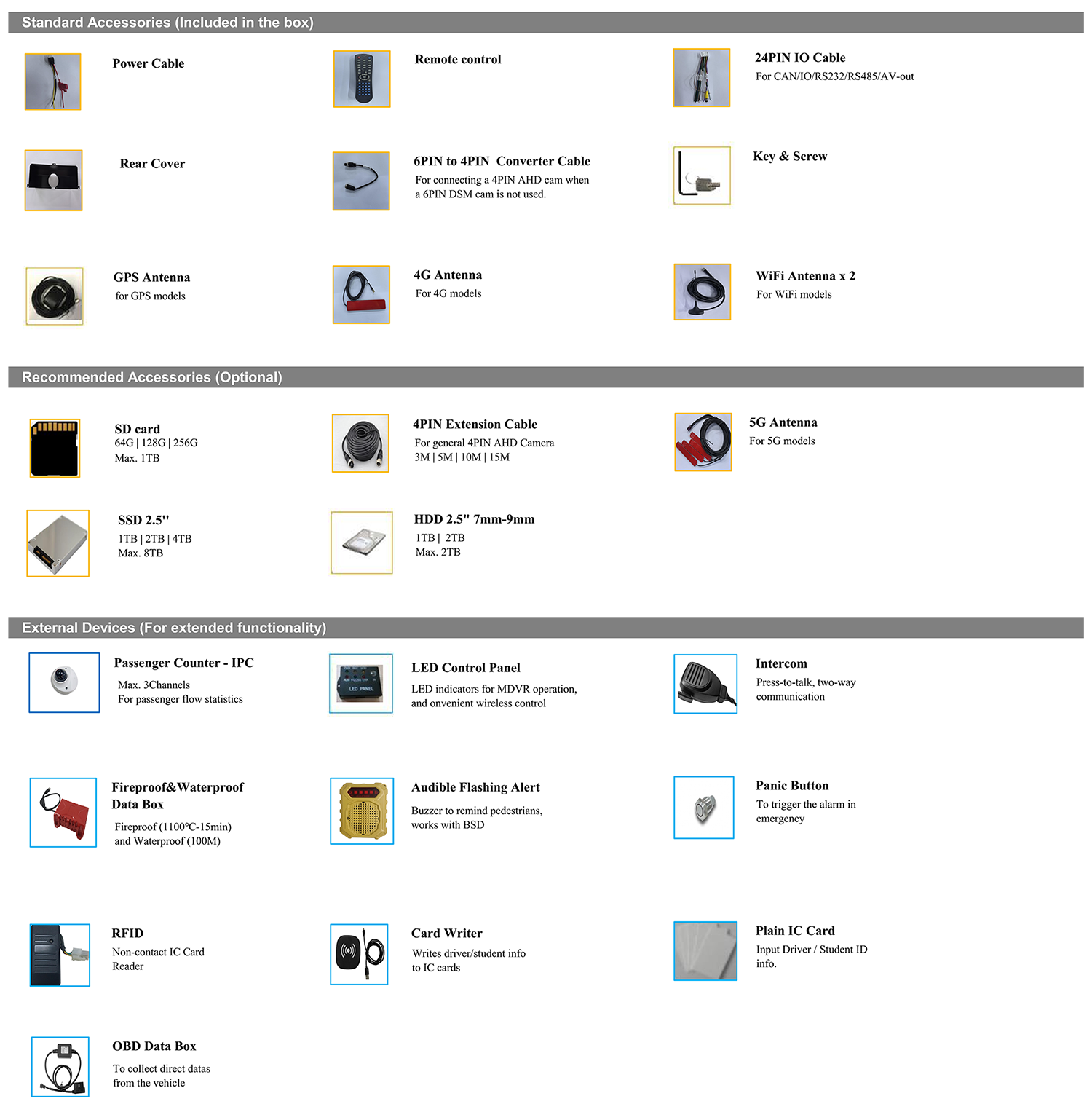

Accessories

Related solutions

Truck Vehicle monitoring System Solution

Order model

• With 4G / 5G, GPS, WiFi modules optional, according to different demands.

• GPS: For map, location and route tracking

• 4G / 5G: For real-time video and monitoring

• Wi-Fi: For automatically downloading video file

Spec Sheet Download

Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
