How to connect monitor with AV-output

2020-03-27  FAQ  506 views  wuqianyun

Sometimes, customer need connect MDVR to TV, need use big screen to do operations and monitor the vehicles.So it need follow the step and use cables to make connection.

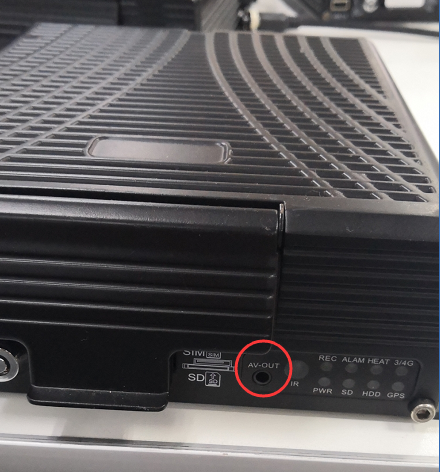

1. Connect from the front 3.5mm jack AV out.

How to connect monitor with AV-output Picture1

How to connect monitor with AV-output Picture2

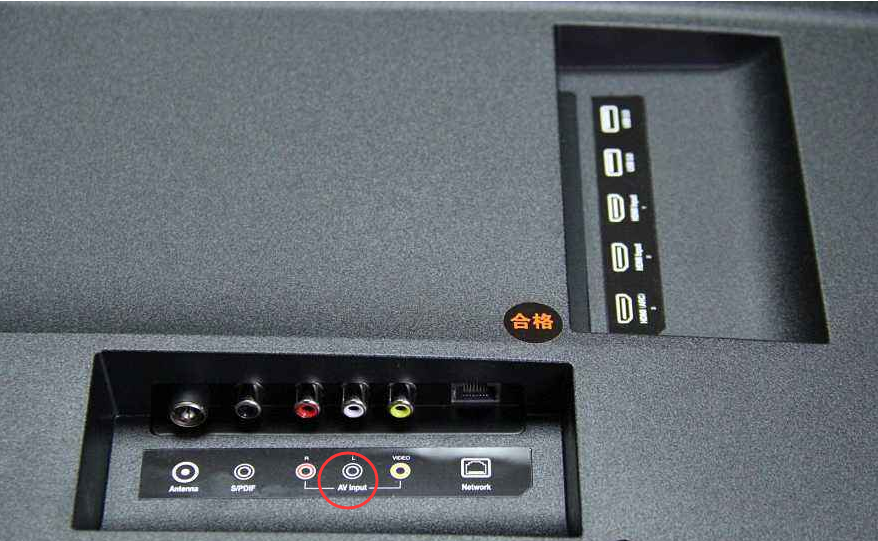

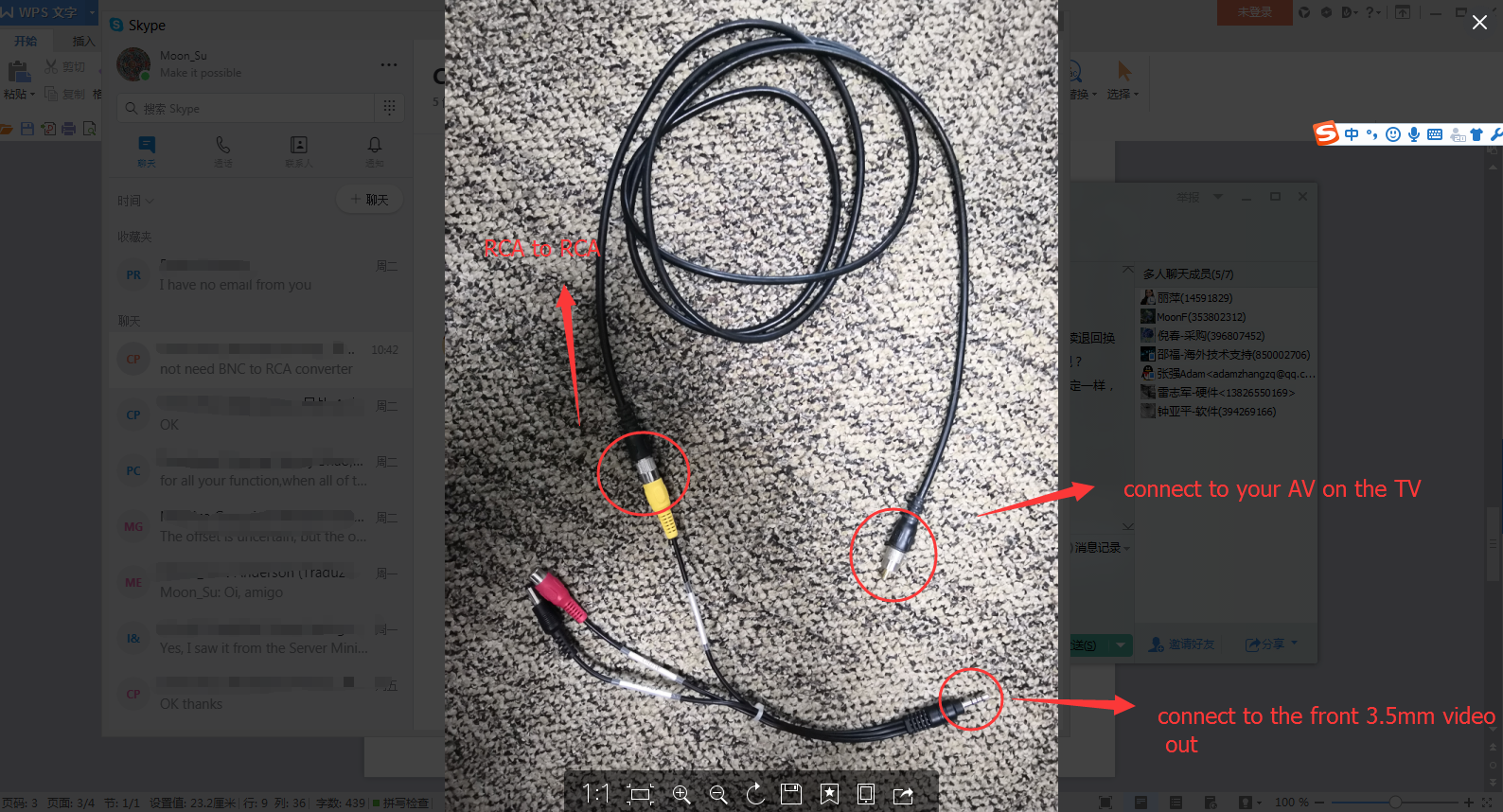

2. Connect the convert cable to the AV port of TV.

How to connect monitor with AV-output Picture3

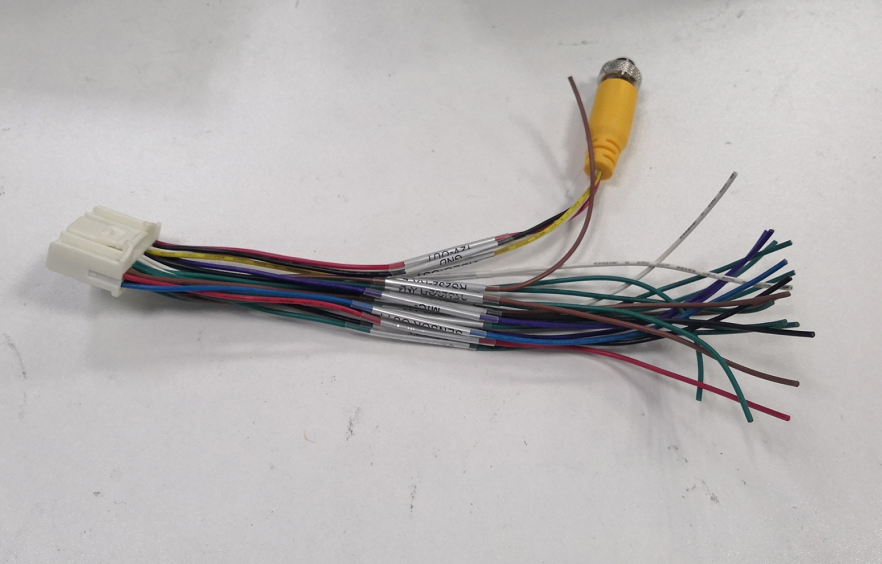

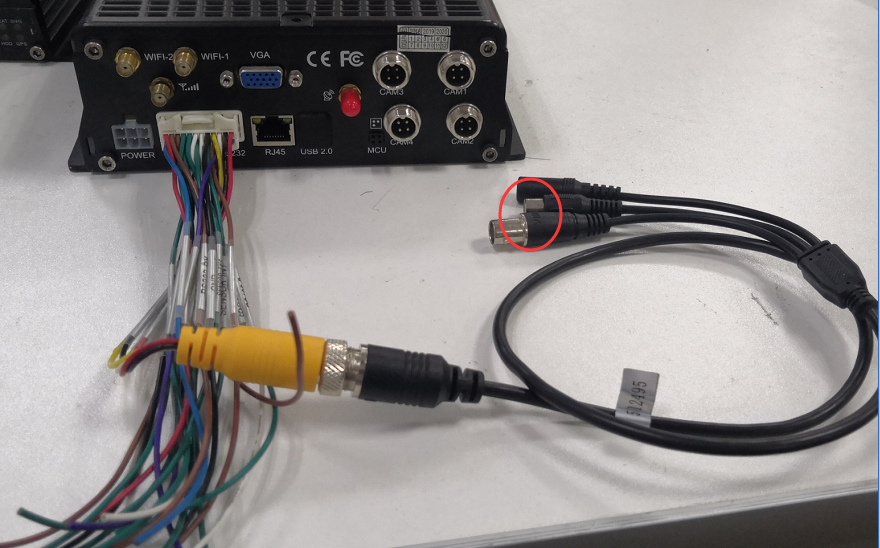

3. You can also use the rear port to connect TV. Use the convert cable to connect the  cable in the first picture.

How to connect monitor with AV-output Picture4

How to connect monitor with AV-output Picture5

FAQ DOWNLOAD:

How to connect monitor with AV-output Picture6How to connect monitor with AV-output.doc
