RJ45 definition

2019-12-06  FAQ  702 views  shaofu

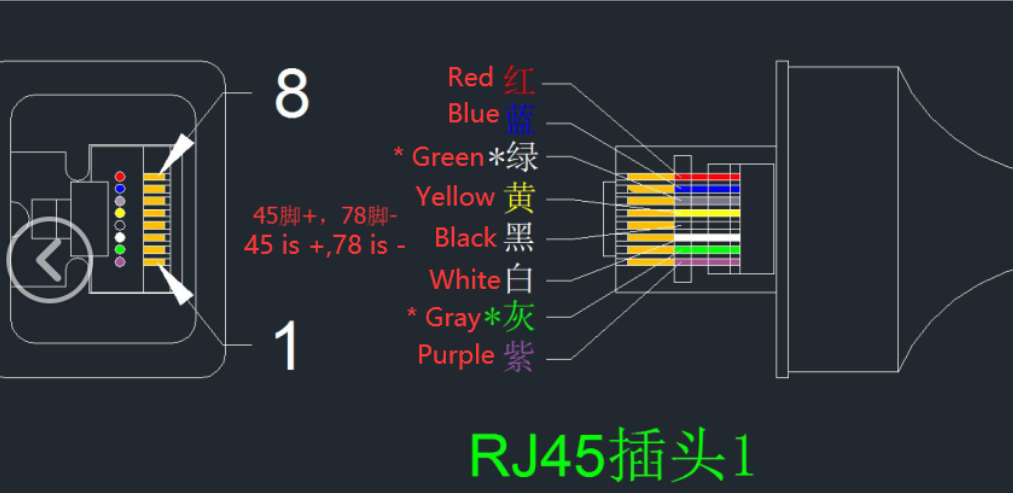

For our MDVR, it have a RJ45 port, many customer want to know the RJ45 definition, then he can use it to connect the IPC or do others. For this, 4/5 pin is +, 7/8 pin is -.

RJ45 definition Picture1

RJ45 definition Picture2

RJ45 definition Picture3

For JH8-HYBRID(V2) and JH8-NVR, it also had another air network port, it can converted to RJ45.

RJ45 definition Picture4


RJ45 definition Picture5RJ45 definition.docx
