This IP67 Mobile DVR system is designed for buses, coaches, and commercial fleets requiring reliable onboard video recording in harsh environments.
Built around a rugged 16-channel AHD Mobile DVR, the system supports multi-camera video capture, local storage, and stable operation under vibration, dust, water, and extreme temperatures.
It is an ideal Mobile DVR system for tour buses, school buses, trucks, taxis, and emergency vehicles.
Mobile DVR Model: JH16-NNN (N/A)
Mobile DVR System Features:
16 x 720P AHD Video input, support 960P AHD camera.
Waterproof & Dustproof IP67.
Support 2.5" 7mm-9mm HDD (up to 2TB), also support 2.5" SSD (up to 8TB) and 1 SD card for backup(up to 1TB).
Internal G-sensor.
Anti-Shock and Anti-Vibration MIL-STD-810G certified.
Hard drive auto-heating startup in freezing weather.
Operating temperature - 40℃ ~ + 80℃.
24V-36V wide voltage power supply.

Product Description

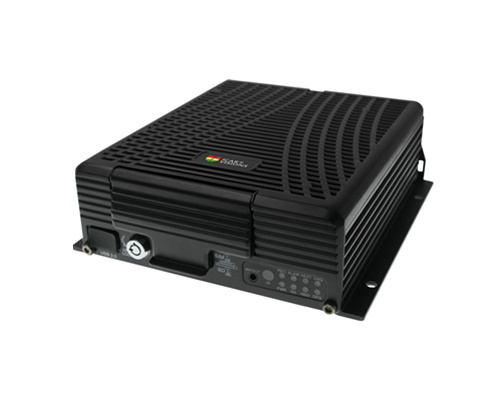

JH16-NNN is the core recording unit of an IP67-rated Mobile DVR system, specially engineered for vehicle surveillance and fleet video management.
The system supports up to 16 AHD cameras, providing full vehicle coverage including front view, cabin, luggage area, and blind spots. With local HDD/SSD and SD card backup, the Mobile DVR system ensures continuous recording even in unstable power or network conditions.
Featuring MIL-STD-810G anti-vibration certification, wide voltage input, and automatic hard drive heating, this Mobile DVR system delivers stable performance for long-distance buses and heavy-duty vehicles.
Accessories

Order model
with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
| Order Model | Module Optional |
| JH16-GFW | GPS+4G+WIFI |
| JH16-GFN | GPS+4G |
| JH16-GWW | GPS+3G+WIFI |
| JH16-GWN | GPS+3G |
| JH16-GNW | GPS+WIFI |
| JH16-GNN | GPS |
| JH16-NNN | Recording Only |
Spec Sheet Download
This Mobile DVR system is widely used in
Tour buses and coaches
School buses
City buses and public transportation
Trucks and logistics vehicles
Taxis and ride-hailing vehicles
Ambulances and emergency vehicles
The system provides reliable video evidence, improves driving safety, and supports fleet management and accident investigation.

Mobile DVR System Summary
As a rugged and expandable Mobile DVR system, JH16 series offers a cost-effective solution for vehicle video recording without relying on constant network connectivity.
Optional GPS, 4G, and WiFi modules allow the Mobile DVR system to scale from local recording to full fleet monitoring when required.
