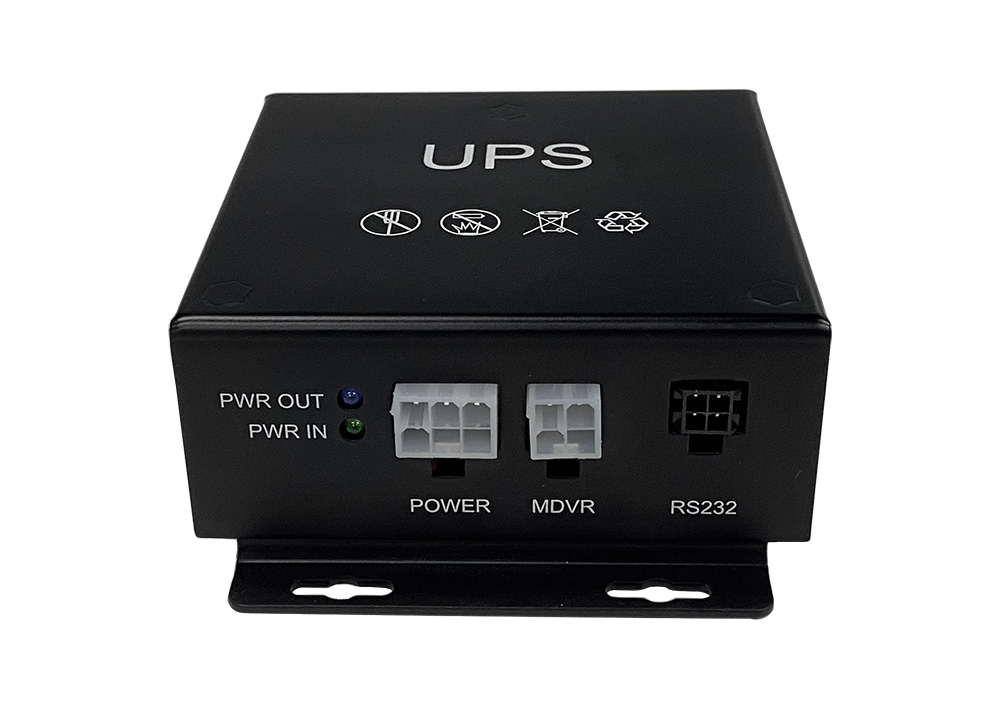

Model: JD-UPS-G

Product Introduction

The UPS is a high-end backup power supply designed for vehicle MDVR products. The input section uses a lithium battery and a special charge management IC, and it uses the high efficiency DC-DC buck-boost switching circuit. In order to achieve accurate voltage overshoot, over-discharge voltage, current overload and short circuit protection, it uses a battery cell protection control circuit. The rated input voltage is 9 ~ 36V DC. When the supply voltage of vehicle battery is less than 10.5V or unexpected power failure, the vehicle MDVR will automatically switch to the UPS.

Product Features

Adopting IC control technology and adding multiple protection circuits.
High efficiency output, high-capacity branded lithium battery cell energy storage.
Flexible and convenient installation.
Dedicated onboard input/output interface.
The appearance adopts a black all metal anti riot design.
Long lifespan, good high-temperature performance, large capacity and no memory effect, safe, environmentally friendly and intelligent.
Equipped with low-voltage protection function for vehicle battery.
Plug and unplug detection: When the UPS is not connected to the device, the UPS will automatically power off.
Autonomous judgment and switching between vehicle battery and UPS power supply.
Different colored indicators will correspond to different working status of the UPS.
