Server Installation Steps which with Independent package of MySQL

2020-06-05 FAQ 111 views chenruiguo

1. Please remember the version of MySQL.


Server Installation Steps which with Independent package of MySQL Picture1

2. MySQL Installation.


3. IVMS Server Installation.

MySQL  Installation

Select language


Server Installation Steps which with Independent package of MySQL Picture2


Select the installation directory


Server Installation Steps which with Independent package of MySQL Picture3


Note: the installation directory doesn’t need to be same as the server program.

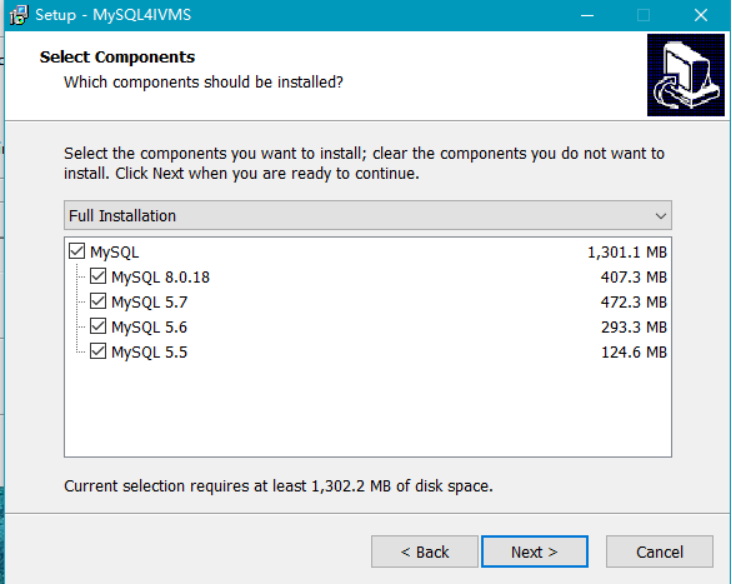

Select MySQL version


Server Installation Steps which with Independent package of MySQL Picture4


Other settting


Server Installation Steps which with Independent package of MySQL Picture5

Server Installation Steps which with Independent package of MySQL Picture6

Server Installation Steps which with Independent package of MySQL Picture7

Server Installation Steps which with Independent package of MySQL Picture8


Installation finish


Server Installation Steps which with Independent package of MySQL Picture9


MySQL server configuration

New adding service

Click the adding button from interface of server managing software


Server Installation Steps which with Independent package of MySQL Picture10


Server configuration

Service: the name for service (cannot be repetition)

MySQL version: select the version need to start according to the original version

Data path:  MySQL data path

Note: if select old MySQL version, it can use original data path(need to uninstall old MySQL), the defaulted data path for old server is ……\IVMS Server\mysql\gserver_dbdata

If select new MySOL version, it is need to use upgrade tool to import data, and use new data path.(cannot uninstall old MySQL before import data)

Port: that one database using(cannot be repetition)

Binding address: database IP


Server Installation Steps which with Independent package of MySQL Picture11

Server Installation Steps which with Independent package of MySQL Picture12


Start service

The database service and watchdog will be started automatically after configuration is ready.


Server Installation Steps which with Independent package of MySQL Picture13

IVMS Server Installation

Server Installation Steps which with Independent package of MySQL Picture14


When install server, fill in IP port, click test, showing”OK” means ready.


Server Installation Steps which with Independent package of MySQL Picture15


Note: It is recommended that upgrade it on weekday if you want to upgrade Product Server.  So that our engineers could answer and help immediately if you have any question.

FAQ DOWNLOAD:

Server Installation Steps which with Independent package of MySQL Picture16Installation Steps.doc
