WIFI automatically download settings

2020-04-03 FAQ 230 views sumeng

The following is a description of the headquarters server (External static IP is 58.60.170.165, Server LAN static IP is 192.168.0.147) is also used as a download server.About server installation, Please refer to the documentation “IVMS Server User Installation Manual”.

1. WIFI Download network server topology

You can also build multiple download servers in the network like 192.168.0.148, ect.


WIFI automatically download settings Picture1


Process:

(1)MDVR gets to download site, automatically switch to the WIFI network, then registerd to

the headquarters  server and inform WIFI connection;

(2)The download server determines to start the download tasks if MDVR at the downlod site of WIFI network (SSID distinguish the download site);

(3)The dowload servers send request to MDVR. Then video files and video data of MDVR  are uploaded to the download server through WIFI network.

2.  MDVR settings

Detailed process is as follows:

Step 1: Device number settings(The Dev-Num means the device number.)

Login MDVR system, default Username: 00000 Password: 888888 and click the: GENERAL icons --- Vehicle Information icon --- DEV-NUM fill in digits (for example: 10089), SAVE


WIFI automatically download settings Picture2 WIFI automatically download settings Picture3


WIFI automatically download settings Picture4


Step 2: Network settings

Click the Network icon

a.  SERVER address settings, fill in the external static IP 58.60.170.165

b.  Control port settings, port defaults 6608


WIFI automatically download settings Picture5 WIFI automatically download settings Picture6


WIFI automatically download settings Picture7



Step 3: WIFI settings

Click icon (PREIPHERALS --- WIFI SETUP)

WIFI-Mode: INTERNAL; ENABLE:ON; WIFI HotSpot: Support for multiple hotspots;  IP ADDR,NETMASK,GATEWAY which are set to the wireless router's LAN IP;

SSID and Encryption mode ect: Input your wireless router’s SSID and Encryption mode ect.  After you fill out the OK, SAVE.


WIFI automatically download settings Picture8 WIFI automatically download settings Picture9


WIFI automatically download settings Picture10

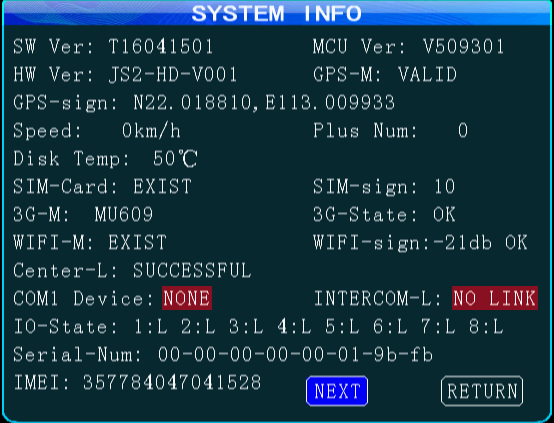

Step 4: Status checking

Return to four image screen. Find the remote control above the INFO button. Display the following page:

a.  WIFI-M: must be the EXIST;

b.  WIFI-sign: must be above -75Db;

c.  Center-L must show: LINK SUCCESS.


WIFI automatically download settings Picture11

3. IVMS Server settings

Step 1: Login admin WEB system:

System Administrator Account: admin, default password: admin


WIFI automatically download settings Picture12


WIFI automatically download settings Picture13


WIFI automatically download settings Picture14


Step 2: Add IVMS client account

For example: Name: xxx company, Account: test


WIFI automatically download settings Picture15


Step 3: Add device

Select device management page Click "Add", Name (Custom, for example: MDVR) IDNO must be with consistent MDVR DEV.NUM maintain . (for example the number 10089)


WIFI automatically download settings Picture16


Step 4:

Select the device, click on the "customer", you will see below image:


WIFI automatically download settings Picture17


Select customers for allocation (for example the “xxx company” just adding ), save



Step 5: Login IVMS client system

Run IVMS client, use the add user to login (for example the account ”test”), the default password: 000000,the server: (fill in the server IP)


WIFI automatically download settings Picture18


Now you can use the IVMS client monitor vehicle.


Step 6: WIFI status checking

Use admin account to login WEB system, You will see the network status is WIFI(AP)


WIFI automatically download settings Picture19


Note:

When use IVMS client account to login IVMS client, you must see the video with the WIFI network. (That’s in order to checking whether the media server work well)


Step 7: Download site settings

 (You can also add multiple download server sites for different download servers)

Below image: Here SSID of Download Site must be same with "WIFI (SSID)" network status like the top image.


WIFI automatically download settings Picture20


Step 8: Download server settings

(You can also add multiple download servers for different download sites)

And add the device to the Download Server.


Below image:


WIFI automatically download settings Picture21


WIFI automatically download settings Picture22


Name: Input the download server name.

IDNO: The ID must be same with download server ID like below image.


WIFI automatically download settings Picture23


Download Site: select which download site for this download server.

LAN Address:  WIFI download server local IP

Wifi Address(Device): WIFI download server local IP

WAN Address(Device)2: WIFI download server external static IP

WAN Port(Device): 6610 : the port same with download server like top image(open the port for this download server, TCP&UDP)

WAN Address(Client)1: WIFI download server external static IP

WAN Address(Client)2: WIFI download server external static IP

WAN Port(Client):  6609: the port same with download server like top image(open the port for this download server, TCP&UDP)


Step 9: Download plan settings

Use IVMS client account “test” to login WEB. You will see the below image.


WIFI automatically download settings Picture24


Setup WIFI download plan, select the MDVR, setup the time when need to download the file, you can use default parameter. Then save.


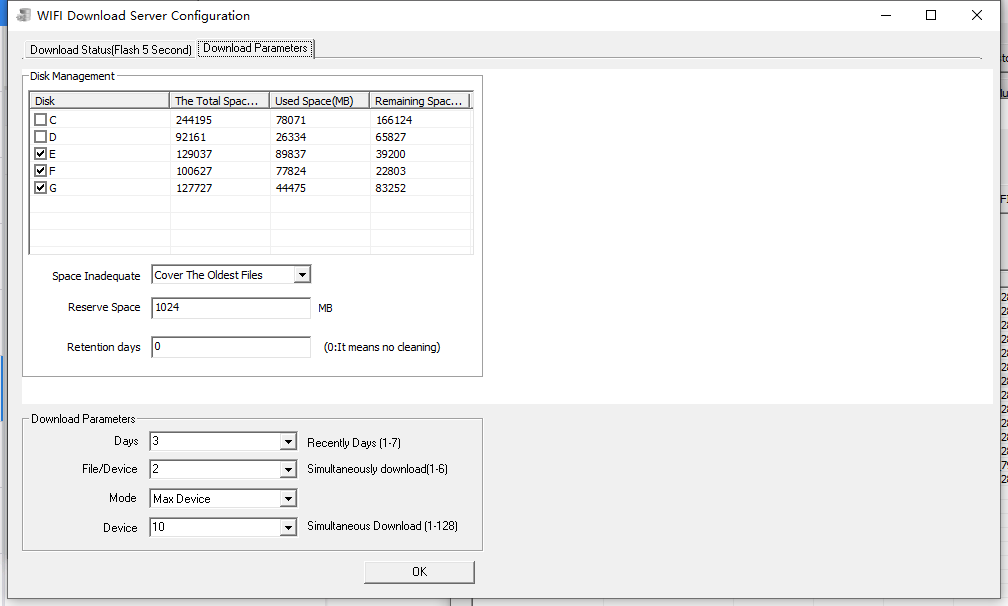

Step 10:  Download status

Click " WIFI Config ", then click "Download Status" wait 2-3 minutes it will automatic download.


WIFI automatically download settings Picture25


WIFI automatically download settings Picture26


The video files at: C/D/E/F:\GPS_STORAGE\RECORD_FILE

If need to use the network cable to realize this wifi download function, you can refer to this following FAQ:

https://www.icarvisions.com/faq/how-to-use-lan-cable-as-wifi-to-download-video-479.html


FAQ DOWNLOAD:

WIFI automatically download settings Picture27WIFI automatically download settings.docx
