Wifi Cluster solution settings

2020-06-18 FAQ 95 views sumeng

Database settings

https://www.dropbox.com/sh/a44t2tv3o78jok4/AAA6vG9AeX1yeDamAwcfMiSka?dl=0

The above is the tool to do this step. And this step is only needed operated on main server.

Wifi Cluster solution settings Picture1

I. Download the database tool and modify the user table to enable it for the remote to the database. Connect the database using the following information and alter the host to %.

Wifi Cluster solution settings Picture2

Wifi Cluster solution settings Picture3

2. Restart the mysql server.

Wifi Cluster solution settings Picture4

3. Enable ivmsmysql.exe at firewall defender.

Wifi Cluster solution settings Picture5

4. Modify server’s database .ini settings. Change DBIP to main server’s wan IP.

Wifi Cluster solution settings Picture6

After finished the database settings, then go to the web page to config the wifi cluster settings.


Main IVMS Server web settings

1.Log in the user of admin and add a new download site. (The download site is unique).

Wifi Cluster solution settings Picture7

2.Add WIFI download Server. (Set your IP correct).


Wifi Cluster solution settings Picture8

Main IVMS Server Download Server

Wifi Cluster solution settings Picture9

AP2 Download Site

Wifi Cluster solution settings Picture10

AP2 Download Server

Wifi Cluster solution settings Picture11

AP3 Download Site

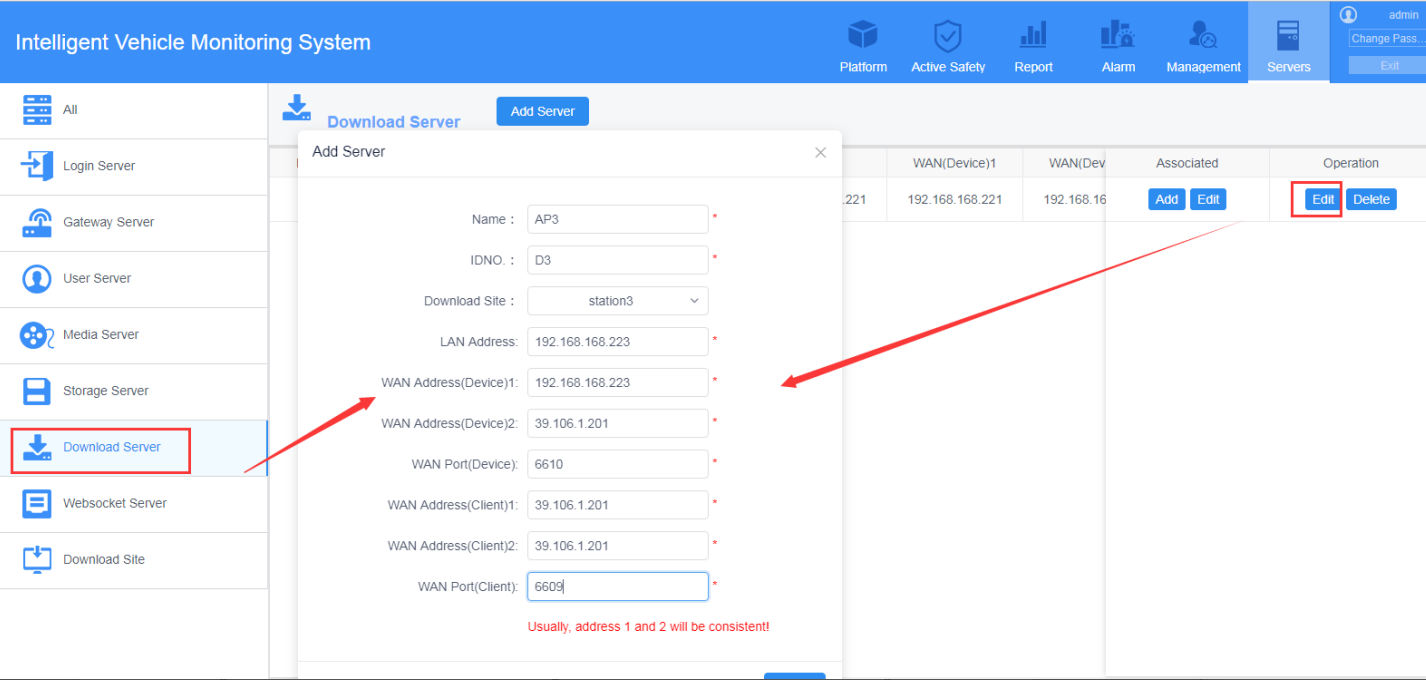

Wifi Cluster solution settings Picture12

AP3 Download Server

3. After this setting, then you can band with the devices to different IVMS Server. Such devices from 10001 to 10031, band them with main server’s Download Server. 10032 to 10064, band them to AP2 IVMS Server. And others to AP3 IVMS Server.

Wifi Cluster solution settings Picture13

4. And then can configure the wifi download plan.

Wifi Cluster solution settings Picture14

AP2 and AP3 IVMS Server Management settings

1.Change the database settings, change the IP to main IVMS Server IP address.

Wifi Cluster solution settings Picture15

2.Change the Download Server config to D2, and login IP address should use main server IP.

Wifi Cluster solution settings Picture16

3. Make the port forwarding, including 3321,6609,6610,6605 on the cluster.

4. Set the MaxFailed to your need value.Because sometimes, device will disconnect and the download plan will request several times for the download task, if set the value to large,it will request more times to make sure your devices can receive the download task.The path is shown as following. And for the MaxFailed, you can set it to 10.

Wifi Cluster solution settings Picture17

Wifi Cluster solution settings Picture18

5.Close the servers services that will not use on the cluster server like the following shows. Only run Download Server, redis Server and watch dog server.

Wifi Cluster solution settings Picture19

6.Finish the Download Server configuration. Can select devices to max amount. But make sure the disk have enough space to storage the videos.

Wifi Cluster solution settings Picture20

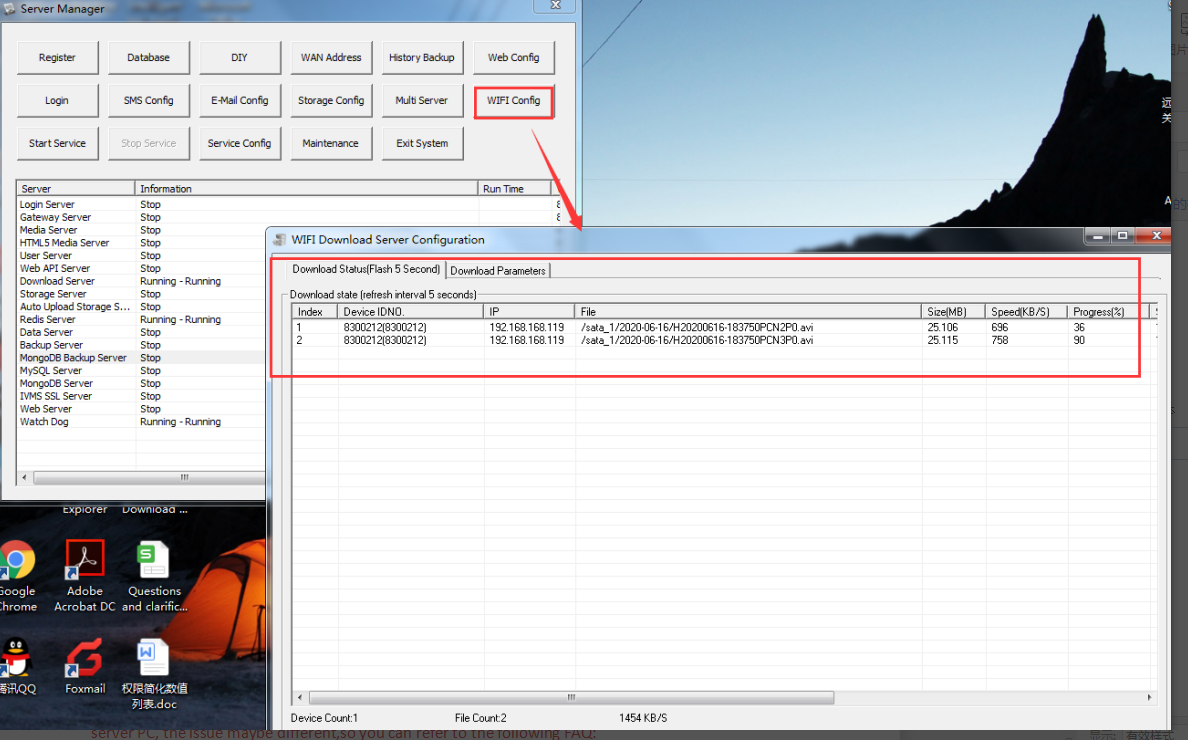

7.Check the wifi config and test if the devices start to download the videos. Both need check AP1 server and AP2 server.

Wifi Cluster solution settings Picture21

When you install the IVMS Server maybe will have the following issues, according to different server PC, the issue maybe different,so you can refer to the following FAQ:

FAQ Linkage:

1.How to solve the server show can not find "mfc100.dll "

https://www.icarvisions.com/faq/how-to-solve-the-server-show-can-not-find-mfc100.dll-571.html

2.How to solve the System Error of ivmssvrwizard.exe

https://www.icarvisions.com/faq/how-to-solve-the-system-error-of-ivmssvrwizard.exe-578.html

FAQ DOWNLOAD:

Wifi Cluster solution settings Picture22Wifi Cluster solution settings.doc
