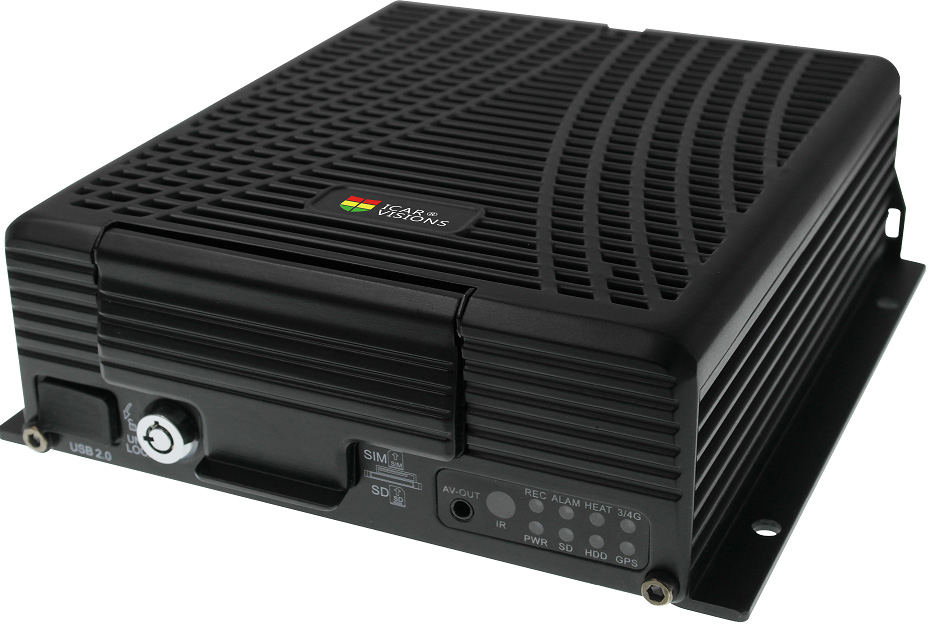

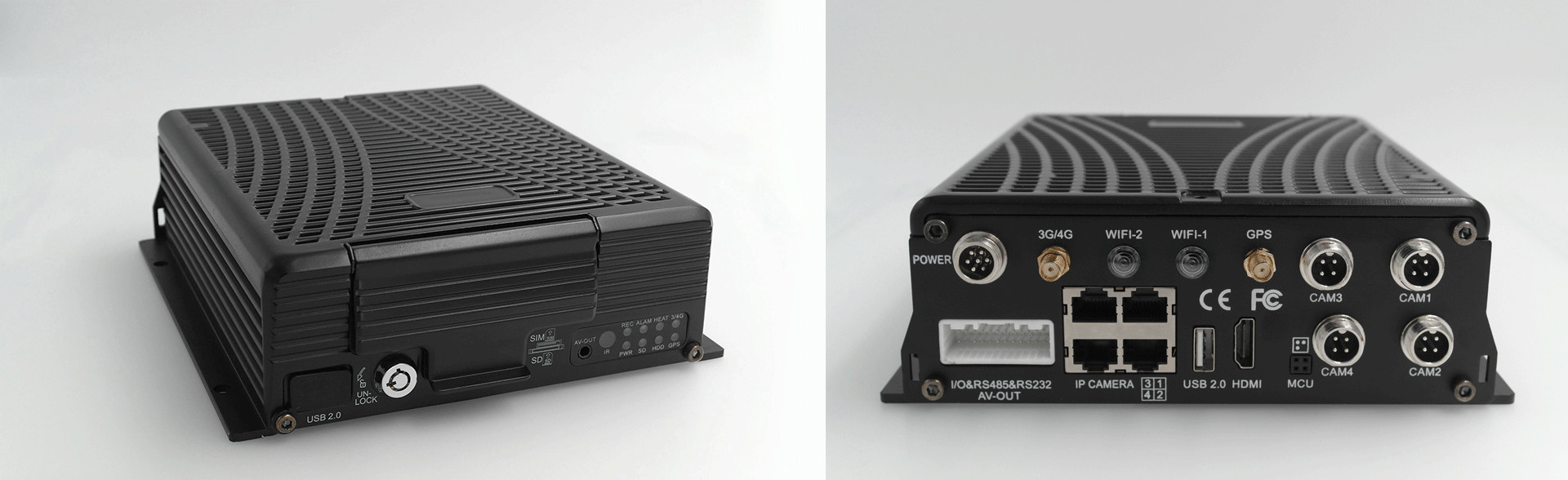

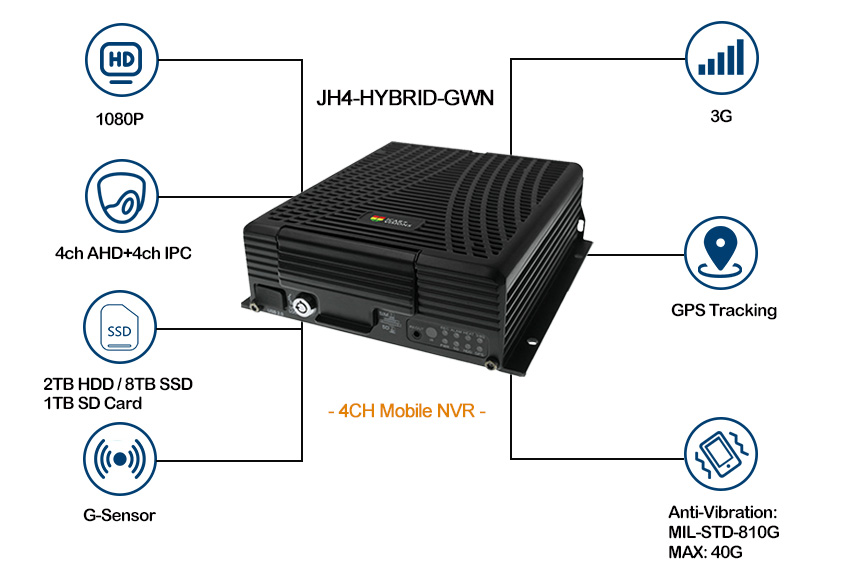

Mobile NVR Model: JH4-HYBRID-GWN (GPS+3G)
4 x IPC(720P/1080P) + 4 x 720P AHD / 960H / D1 / HD1 / CIF , support 960P AHD camera
Built-in Switch 4 x POE(12V) Ethernet Ports
HDMI Video Output
accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup（at 3G/4G/Wi-Fi model option）
Internal G-Sensor, with GPS and 3G
Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
Hard drive automatic heating startup in -40℃ weather
On board UPS 8 seconds delay power-off for data protection
Operating temperature -40℃ ~ +80℃
8V-36V wide voltage power supply
Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with Car Cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.
with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
|Order Model||Description ( Module optional )|
Our rugged, high quality mobile NVRs are ideal for monitoring a wide range of vehicles:
It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Spec Sheet Download
|JH4-HYBRID-GWN Mobile NVR Spec Sheet|
