Model: JH0AN-HD-GFW (GPS+4G+WIFI)
Product Features:
Waterproof & Dustproof IP67
4 x 720P/1080P AHD / 960H / D1 / HD1 / CIF + 1 x IPC (720P/1080P) Video input
Support Blind Spot Detection (BSD) cameras (2 channels)
storage unlimited with 2.5'' SSD + SD Card slot×1 (up to 256GB)
On board UPS 8 seconds delay power-off for data protection
8V-36V wide voltage power supply
Dimensions :146*155*38mm
Click here to view our Mobile DVR cameras
Product Specification
| Function | JH0AN-HD | |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface（OSD menu） | |
| Password Security | 2 Levels: Administrator & User | |
| AI | DSM (JA-MC921) | Yawning Detection Eyes Closing Detection Smoking Detection Making Phone Calls Detection Distraction Detection Driver Absence Detection Camera Covered Detection Wearing Glasses Detection |
| ADAS (JA-MC920) | Lane Departure Warning Safe Distance Warning Froward Collision Warning Pedestrian Collision Warning | |
| BSD（Optional） | Support Blind Spot Detection Cameras (2 channels) | |
| Video | Video Input | Supports 4 channels CIF/HD1/D1/960H camera Video input Supports 4 channels 720P AHD camera Video input Supports 4 channels 1080P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input |
| Video Output | 1 Channels (Rear Panel on RJ45&AV-OUT Port) | |
| Video Display | Single picture, 1~5 pictures | |
| Signal System | PAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame 1080P/sec ) | |
| Image Compression | ||
| Audio | Audio Input | 4 Channels |
| Audio Output | 1 Channel | |
| Record Format | Synchronized A/V recording | |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P /1080P optional |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, | |
| HD1/D1: 2048Kbps ~ 400Kbps, | ||
| 960H: 2048Kbps ~ 400Kbps, | ||
| 720P:4096Kbps ~ 400Kbps | ||
| 1080P:4096Kbps ~ 400Kbps | ||
| Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) | ||
| Audio Bit Rate | 40Kbps | |
| Storage | 1 SSD and 1 SD card （at 3G/4G/WIFI model option） | |
| Alarm | Alarm Input | 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC |
| Alarm Output | 2 Channels, 12V output | |
| Communication Ports | RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 1 Port for communication or data usage | |
| RJ45 Network | 1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P | |
| Speed | 1 Channel | |
| USB | 1 Ports for USB 2.0, download video files, upgrade firmware and plug in a mouse for setup | |
| Wireless Communication* | 3G/4G* | Supported |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n/ac optional | |
| GPS* | Int'l Standard GPS | Internal GPS module. Real-time geographic coordinates, speed information |
| G-Sensor + Gyroscope | Internal G-Sensor + Gyroscope | Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering. |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. | |
| Software Upgrade | Local or Remotely | Upgrade through SD card or remotely via Intelligent Vehicle Monitoring System (IVMS) platform |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage |
| Voltage Output | 12V | 12V（+/-0.2V），Max 3A |
| ACC Detection | ≤4V | Power-off |
| ≥6V | Power-on | |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω resistance |
| I / O Port | <1V | Low voltage trigger |
| >5V | High voltage trigger | |
| Operational Temperature | -25℃ ~ 75℃ | Install in well ventilated area, protected from moisture, heat, dust and vibration. Confined by SSD temperature also. |
| Weatherproof/Water Proof | IP67 | |
| Dimensions | 146*155*38mm | |
Model: JA-MC920
| Model | JA-MC920 |
| Image Sensor | 1/2.9” CMOS |
| TV System | PAL/NTSC |
| Horizontal Resolution | 1080P |
| Lens optional | 6mm |
| Effective Pixel Arrey | 1920H x 1080 V |
| Min illumination | 0.001 Lux |
| Audio function | N/A |
| S/N Ratio | >80dB |
| WDR | D-WDR |
| IR &Infrared LED Range | N/A |
| Horizontal angle of view | 50° |
| Tilt Adjusting | Support |
| Power Supply | DC 12V±5%,65mA±5mA |
| Dimensions | 105*68*43mm |
| Net Weight | 100g |
| Weatherproof/Water Proof | N/A |
| Operational Temperature | 25℃～75℃ |
| Operational humidity | ＜90% |
| Video port | 4PIN Aircraft Round Connector Plug |
Model: JA-MC921
| Model | JA-MC921 |
| Image Sensor | 1/3” CMOS |
| TV System | PAL/NTSC |
| Horizontal Resolution | 1080P |
| Lens optional | 6mm |
| Effective Pixel Arrey | 1920H x 1080 V |
| Min illumination | 0.001 Lux |
| Audio function | Support |
| Speaker | Support |
| S/N Ratio | >80dB |
| WDR | D-WDR |
| IR &Infrared LED Range | support |
| Horizontal angle of view | 50° |
| Tilt Adjusting | Support |
| Power Supply | DC 12V±5%,165mA±5mA |
| Dimensions | 80*86.5*37.5mm |
| Net Weight | 150g |
| Weatherproof/Water Proof | N/A |
| Operational Temperature | ­25℃～75℃ |
| Operational humidity | ＜90% |
| Video port | 10PIN Aircraft Round Connector Plug |

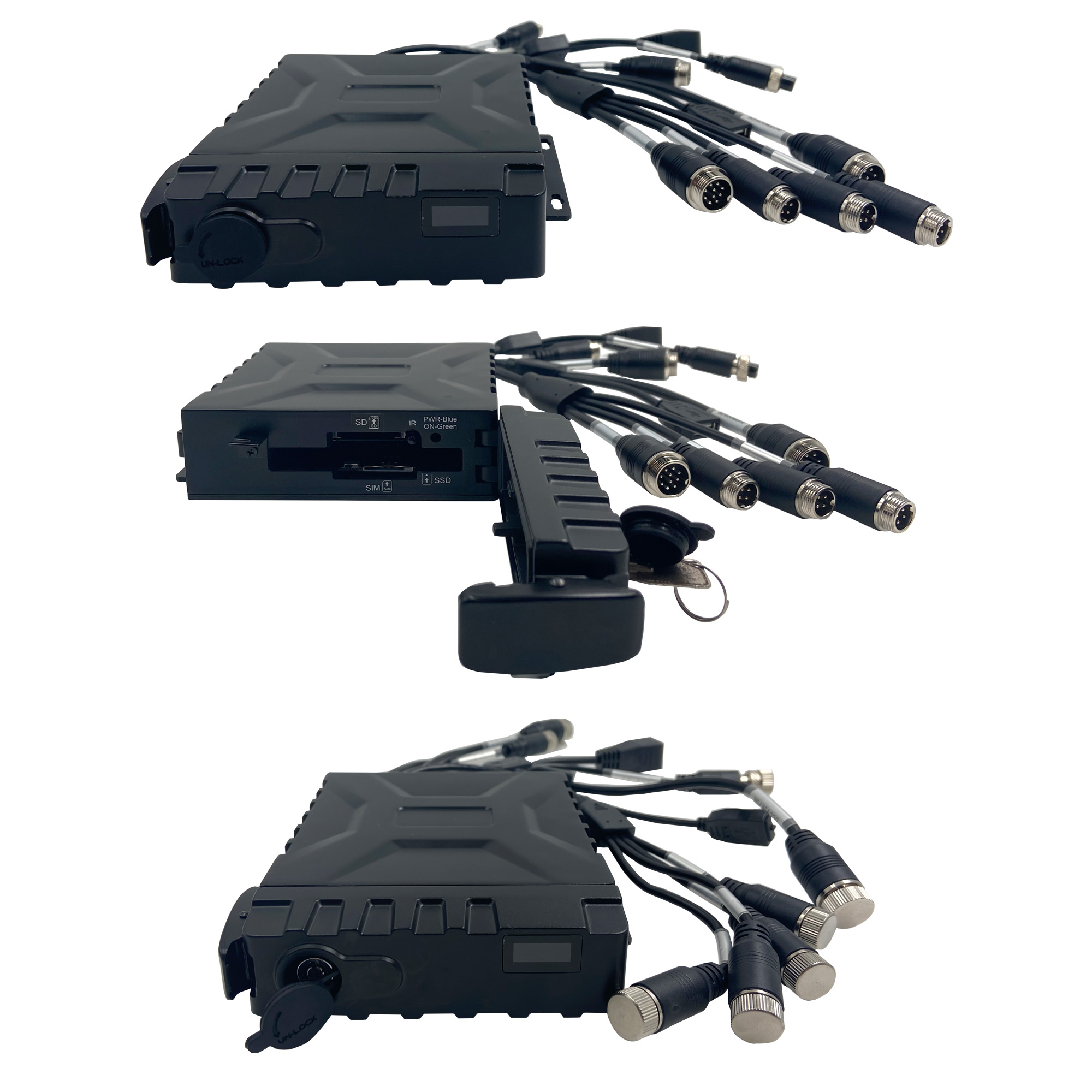

Product Images
Product Description
ICARVISIONS introduced the new H.265 Mobile DVR JH0AN-HD (telematics system) that supports AI (ADAS & DSM &BSD), multiple scenarios with emphasis on IP67 Waterproof & Dustproof and its mini-sized design.
JH0AN-HD intelligent video terminal all-in-one is a smart device with high cost performance and high functional scalability that integrates vehicle-specific HD hard disk video recorder, driving record, ADAS, DSM, and BSD. It can be connected to 4 channels of 1080P/960P/720P AHD analog HD + 1 channel of IPC (720P/1080P) network camera.
The product uses a quad-core high-speed AI processor, a built-in Linux embedded operating system, and combines the most advanced H.265/H.264 video codec, 3G/4G network, GPS positioning, WiFi and other technologies in the IT field. Electric protection technology, and vehicle wide voltage design all in one.
When the forward-looking ADAS camera detects the potential risk of collision with the vehicle in front, the vehicle is too close, or the unintentional lane departure, the system will remind the driver to take timely measures through a warning sound; the internal-view DSM camera can identify the driver's fatigue driving and distracted driving, Smoking, making phone calls and other abnormal driving behaviors.
When the BSD blind spot monitoring camera detects that there is a potential collision risk in the front and right blind spots, the AI intelligent algorithm in the device host analyzes the alarm level (level 1, level 2, and level 3), and reminds the driver to take timely action through a warning tone Measures.
When an ADAS, DSM, BSD early warning event is triggered, the picture or video of the dangerous moment can be directly uploaded to the platform through the terminal device; while reducing the traffic accident rate, the driver can conduct in-depth driving behavior analysis through the collected early warning data To improve operational efficiency for the fleet.
New H.265 Mobile DVR, supports Mining Truck and Ferry (Waterproof & Dustproof)

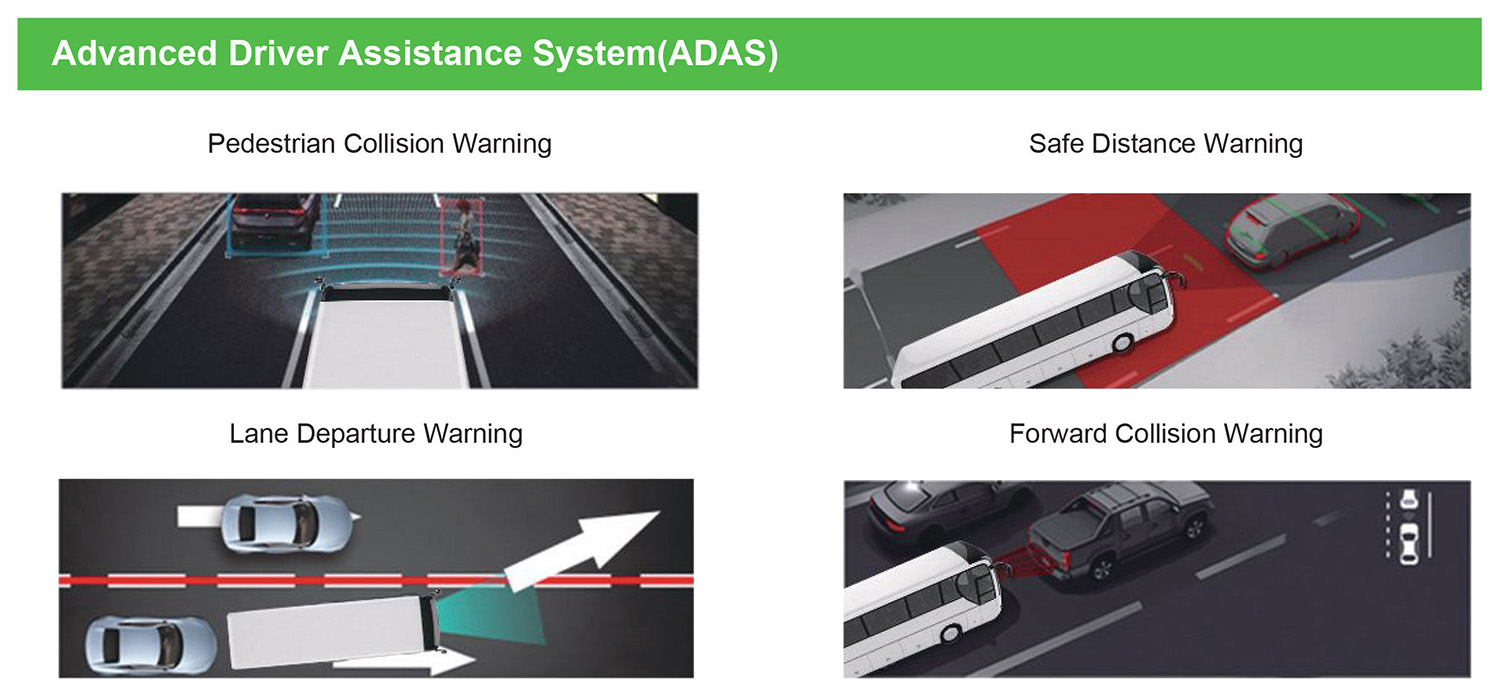

ADAS (Advanced Driver Assistance System)
Monitor and record the front road safety: lane departure, collision warning, pedestrian warning, etc.
ICARVISIONS and Anti-speeding technology: ADAS
DSM (Driver Status Monitor)
Supervising and recording driver's behaviour: smoking, sleepy, phone call, etc.
ICARVISIONS Anti-speeding technology: Driver Status Monitoring
Click on information to learn more about ADAS&DSM:
How does ADAS help drivers drive safely？
Why is Driver Status Monitoring(DSM) System helpful to prevent fatigued driving?
BSD (Blind Spot Detection)
Detects objects in the vehicle's blind spot and trigger the audible warning to both driver and outside.
Click on information to learn more about BSD:
Why we need AI-MDVR with BSD and 360 Panoramic View for Vehicle Surveillance?
Anti-speeding technology - The Blind Spot Detection
About usage scenarios, JH0AN-HD supports Mining truck and Ferry.
Order model
with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file
| Order Model | Description ( Module optional ) |
| JS2AN-HD-GFW | GPS+4G+WIFI |
| JH0AN-HD-GFW | GPS+4G+WIFI |
| JH8AN-HD-GFW | GPS+4G+WiFi |
| JH4AN-HD-GFW | GPS+4G+WiFi |

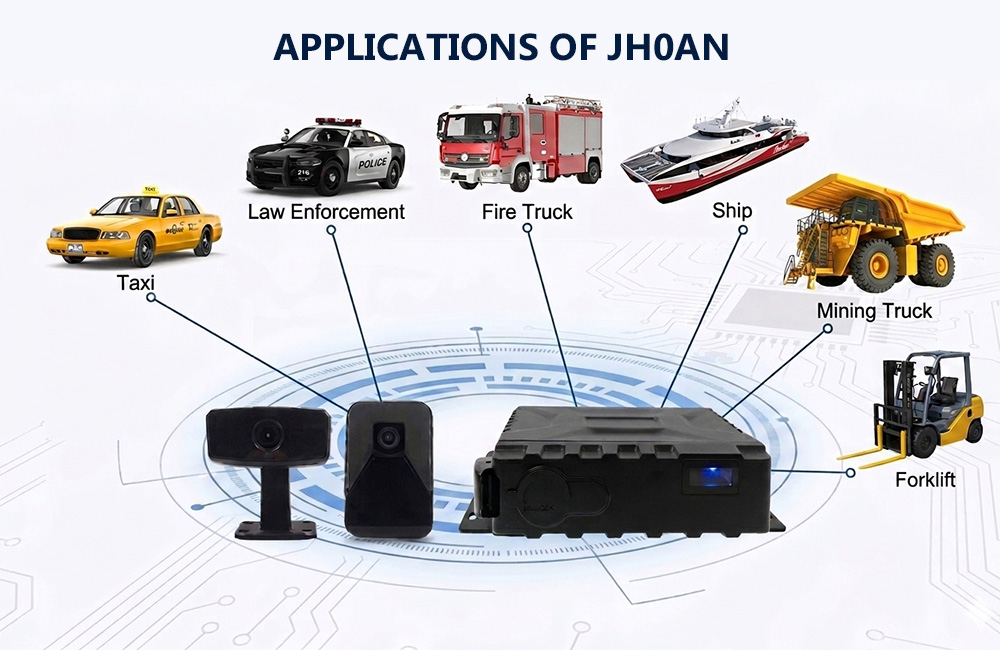

Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:
It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
