4 channel AI MDVR for Vehicle Support 4G WiFi

4 channel AI MDVR for Vehicle Support 4G WiFi Picture1

Mobile AI DVR Model: JH4AN-HD-GFW (GPS+4G+wifi)

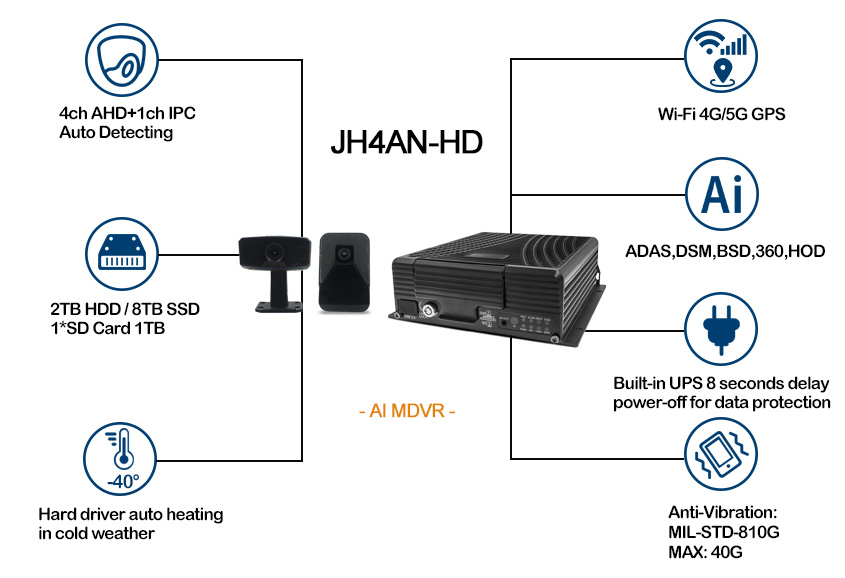

Product Features:

  • Auto detecting & matching for all analog cameras

  • Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 2 channels 1080P AHD  / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

  • Option2: 4 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

  • Support ADAS+DSM (optional)

  • Support Blind Spot Detection cameras (optional)

  • Accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 256GB) for backup(at 4G/Wi-Fi model option)

  • Support GPS, 4G and Wi-Fi (5.8 Ghz)

  • Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering

  • WIFI  automatic download

  • Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)

  • Hard drive automatic heating startup in -40℃ weather

  • On board UPS 8 seconds delay power-off for data protection

  • Operating temperature -40℃ ~ +80℃

  • 8V-36V wide voltage power supply

4 channel AI MDVR for Vehicle Support 4G WiFi Picture2

Product Specification

FunctionJH4AN-HD
SystemLanguageEnglish   / Chinese
Operation InterfaceGraphical   User InterfaceOSD menu
Password Security2   Levels: Administrator & User
AI AlgorithmDSM   (JA-MC921)

Yawning Detection

Eyes Closing Detection

Smoking Detection

Making Phone Calls Detection

Distraction Detection

Driver Absence Detection

Camera Blocked Detection

Wearing Glasses Detection

ADAS (JA-MC920)Lane Departure Warning
Safe Distance Warning
Froward Collision Warning
Pedestrian Collision Warning
BSD(Optional)Support Blind Spot Detection Cameras (2 channels)
VideoVideo   InputOption1: Support 2 channels 1080P AHD (DSM & ADAS) + 2 channels 1080P AHD  / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input                                                                                                                                                        Option2: 4 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input
Video Output3 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port & VGA 1080P)
Video DisplaySingle picture, 1~5 pictures
Signal SystemPAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame 1080P/sec )
Image Compression
AudioAudio Input4 Channels
Audio Output2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
Record FormatSynchronized   A/V recording
Recording & StorageImage   Resolution CIF   / HD1 / D1 / 960H / 720P /1080P optional
Video CodingISO14496-10   Industry Standard
Video Bit RateCIF:   1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
720P:4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate40Kbps
StorageUp  to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
AlarmAlarm   Input8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output1 Channel, 12V output
Communication PortsRS4851 Port for PTZ control or Data Device usage
RS2322 Ports for communication or data usage
RJ45 Network1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P
Speed1 Channel(Optional, shared with the port IO /IN 8)
CAN1 Channel(Optional, shared with the port IO /IN 6/7)
USB2 ports. The front one is USB 2.0 to download video files & upgrade firmware; The rear panel one is USB 2.0 for optional.
Wireless Communication*3G/4G*Supported
Wi-Fi*Internal Wi-Fi 802.11b/g/n/ac optional
GPS*Int'l   Standard GPSInternal GPS module. Real-time geographic coordinates, speed information
G-Sensor + GyroscopeInternal   G-Sensor + GyroscopeSupport an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering.
SoftwarePC   PlaybackA/V, GPS,  Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMSWireless  (require Wi-Fi or cellular Option)  real-time A/V monitoring, GPS, alarms, etc.
Software UpgradeLocal   or RemotelyUpgrade through the front USB3.0 or remotely via IVMS platform
Voltage Input+8~+36V8~36V DC Please check operational voltage of   vehicle prior to the installation of the MDVR and its accessories to prevent   possible damage
Voltage Output12V12V(+/-0.2V),Max 3A
ACC Detection≤4VPower-off
≥6VPower-on
Video Input Resistance 75Ω75Ω
Video Output Voltage 2Vp-p2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port<1V Low voltage trigger
>5V High voltage trigger
Operational Temperature-40℃~80℃Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions192x184x61mm Including  Security Cover 248x184x61mm


ADAS Camera

Model: JA-MC920


Model (ADAS Camera)JA-MC920
Image Sensor1/2.9”  CMOS
TV SystemPAL/NTSC
Horizontal Resolution1080P
Lens optional6mm
Effective Pixel Arrey1920H  x 1080 V
Min illumination0.001   Lux
Audio functionN/A
S/N Ratio>80dB
WDRD-WDR
IR &Infrared LED RangeN/A
Horizontal angle of view60°
Tilt AdjustingSupport
Power SupplyDC   12V±5%,65mA±5mA
Dimensions105*68*43mm
Net Weight100g
Weatherproof/Water ProofN/A
Operational  Temperature-25℃~75℃
Operational  humidity90%
Video port4PIN Aircraft Round Connector Plug


DSM Camera

Model: JA-MC921


Model (DSM Camera)JA-MC921
Image Sensor1/3”   CMOS
TV SystemPAL/NTSC
Horizontal Resolution1080P
Lens optional6mm
Effective Pixel Arrey1920H   x 1080 V
Min illumination0.001  Lux
Audio functionSupport
SpeakerSupport
S/N Ratio>80dB
WDRD-WDR
IR &Infrared LED RangeIR LED 3535*2 pcs
Horizontal angle of view90°
Tilt AdjustingSupport
Power SupplyDC   12V±5%,65mA±5mA
Dimensions80*86.5*37.5mm
Net Weight150g
Weatherproof/Water ProofN/A
Operational  Temperature-25℃~75℃
Operational  humidity90%
Video port10PIN  Aircraft Round Connector Plug

Product Description

The JH4AN-HD is a 4 Channel AI MDVR designed for on-board vehicle recording. It has four ports to record up to four cameras simultaneously and an ethernet port to connect a forward-facing IP camera. The system comes with GPS to record the vehicle location and driving route as well. Footage records onto an included 2TB hard disk with backup recording (128GB) onto 1 SD card. With a solid and compact build, the JH4AN-HD is vibration-proof, installation-friendly and combines powerful functions together with a stable performance.


New Model JH4AN-HD auto detecting and matching for all analog cameras. This Mobile DVR to set up 4 channels of cameras It will go Plug and Play.


So, to save your time of installation.


The JH4AN-HD support Blind Spot Detection, detects objects in the vehicle's blind spot and trigger the audible warning to both driver and outside.

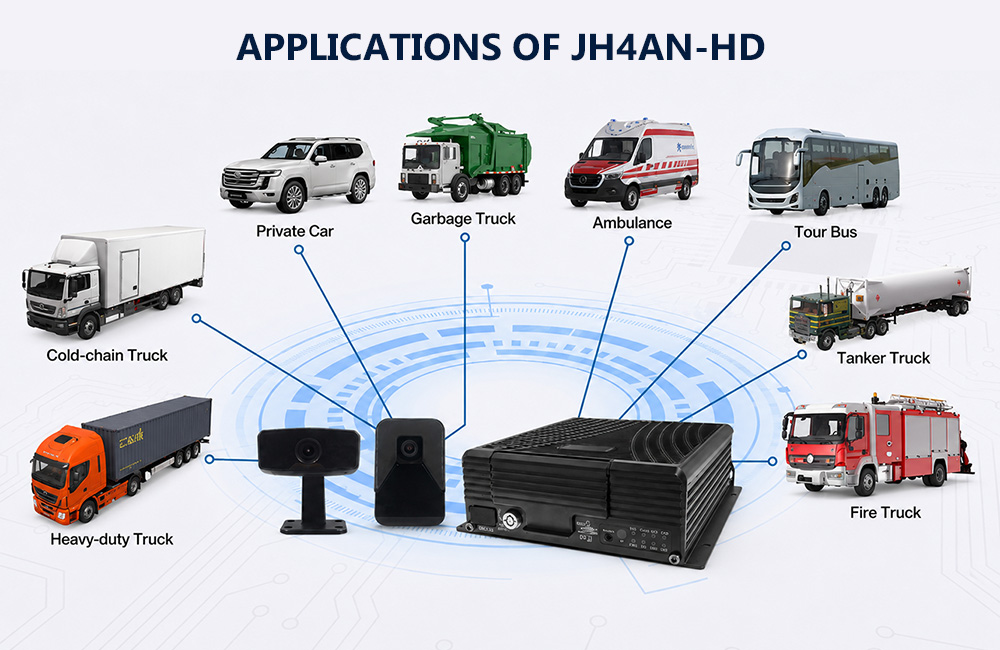

This Mobile DVR is ideal for large-scale fleet applications such as monitoring buses, coaches, car, taxis, lorries, fire trucks, ambulances, passenger vehicles, patrol cars, prison transportation vehicles and emergency response vehicles, etc. The DVR is equipped with an anti-shock vibration resistant chassis that is built to endure the rigorous bumps and turns of mobile surveillance applications, to ensure high quality video on-the-go.


This remote viewable Mobile DVR makes use of cellular 4G data networks and Wi-Fi hotspots, via a SIM card and Ethernet connections for remote monitoring of live audio and live and recorded video. The DVR enables you to quickly determine GPS location with the Google maps interface, and offers camera control, while the built-in Wi-Fi client provides convenient wireless offloading of video evidence to an optional server.


The JH4AN-HD Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.

Related solutions

Vehicle monitoring System Solution For Coach/Tour bus

Are You Always Wondering...

How to get a perfect fleet management solution?

How to quickly know whether the driver drives illegally?

How to quickly provide evidence for traffic accident, theft, racketeering, etc.?

......



4 channel AI MDVR for Vehicle Support 4G WiFi Picture3

Icarvisions's Vehicle Mobile DVR System can solve your worries!

4 channel AI MDVR for Vehicle Support 4G WiFi Picture4

Achieve remote monitoring by Vehicle Mobile DVR GPS/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

The vehicle DVR system Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions.



Such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc.



APP <icarview> is available for mobile phones in Android and iOS system. Click here to learn more about Client Software IVMS (Intelligent Vehicle Management Software).



4 channel AI MDVR for Vehicle Support 4G WiFi Picture5

Accessories

Mobile DVR for Vehicles:

4 channel AI MDVR for Vehicle Support 4G WiFi Picture6


Mobile DVR of Camera:

4 channel AI MDVR for Vehicle Support 4G WiFi Picture7

Order model

  • with 3G / 4G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking

  • 3G / 4G: For real-time video and monitoring

  • Wi-Fi: For automatically downloading video file

  • Order Model Description ( Module optional )
    JS2AN-HD-GFW GPS+4G+WIFI
    JH8AN-HD-GFW GPS+4G+WiFi
    JH4AN-HD-GFW GPS+4G+WiFi

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

    It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:car,ambulance,police-car,School Bus,taxi,truck,etc.

    Spec Sheet Download

  • Title Type Download
    JH4AN-HD AI MDVR Spec Sheet pdf
