Blind Spot Detection (BSD) introduction

2022-03-15   AI   2563   Inquire Now

What is Blind Spot Detection (BSD) ?

Blind Spot Detection assists the drivers to avoid a collision by detecting people in the blind spot area when driving.

Blind Spot Detection (BSD) introduction Picture1

Commercial vehicles are big and often suffer from very poor visibility, despite being generously equipped with mirrors. Almost invariably, the driver cannot see important areas beside the vehicle. The Mobile DVR with such AI functionality enable the Blind Spot Detection using cameras mounted at the side of the cabin to monitor the detection zone for people. The system warns the driver if people is approaching, thereby assisting the driver to avoid hitting the people.

So is Blind Spot Detection worth it?

Blind Spot Detection is one of the most useful tools for keeping safe.

It's will be able to sense moving objects within the blind spot of the Vehicle detection zone.

When you regardless of day or night, you will be alerted whenever there is a moving object that comes into the side of your vehicle.

Along with the aid of LED blinking light and buzzer sound, the driver can be more aware when lane changing to avoid the possibility of side crash accident.

Even when you have parked your vehicle, when a pedestrian or cyclists is travelling beside you before you open your car door, a warning alarm will also be activated.

Blind Spot Detection usage scenarios

Bus BSD

Blind Spot Detection (BSD) introduction Picture2

Cargo Logistic BSD

Blind Spot Detection (BSD) introduction Picture3

Cargo Logistic Anti-Theft Dectection

Blind Spot Detection (BSD) introduction Picture4

Fuel Tanker BSD

Blind Spot Detection (BSD) introduction Picture5

Construction Truck BSD & Audible Flashing Alert

Blind Spot Detection (BSD) introduction Picture6

How many types of alarms of Blind Spot Detection (BSD) ?

There 6 types of alarm of BSD (Blind Spot Detection):

1. Beware of the large vehicles. (*The lowest level 1, it means there is a certain distance between the people and the vehicle.)

2. Keep distance from vehicles. (*The middle level 2, it means the people is approaching to the vehicle.)

3. Danger, danger!  (*The highest level, it means the people is very close to the vehicle.)

4. Vehicle turns right, be aware.

5. Vehicle turns left, be aware.

6. Vehicle starts to move, be aware.

Blind Spot Detection (BSD) introduction Picture7

The above alarms will be broadcasted aloud over the Visual-audible buzzer with illumination mounted at the side of the cabin to give alerts to people.

Please refer to the video:

Anti-speeding technology - The Blind Spot Detection

Targeted objects of people in blind spot area:

Blind Spot Detection (BSD) introduction Picture8

Blind Spot Detection System

Blind Spot Detection System Includes cameras and Visual-audible buzzer.

1. Blind Spot Detection cameras

The cameras is optional according to the different types of vehicle. The height of installation and camera angle are different. There are 3 models of BSD cameras as below:

Blind Spot Detection (BSD) introduction Picture9

Model: JA-MC922

1080P AHD camera, Infrared LED range 25m; Support 12V DC ±10%

Installation site: mounted at the rear side of the cabin

Mounting height: 1.6 meters ~2.0 meters

Blind Spot Detection (BSD) introduction Picture10

Blind Spot Detection (BSD) introduction Picture11

Model: JA-MC804

1080P AHD camera, 2.1mm lens; Support 12V DC ±10%

Installation site: mounted at the side of the cabin

Mounting height: 2.5 meters ~3.0 meters

It must work with the Mobile DVR with such BSD algorithm module.

Blind Spot Detection (BSD) introduction Picture12

Blind Spot Detection (BSD) introduction Picture13

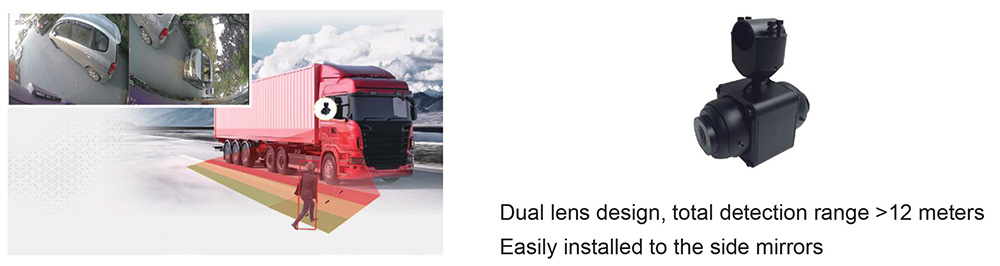

Model: JA-MC923

Dual lens for front and rear, 1080P AHD camera; 2.1mm lens + 2.1mm lens; Support 12V DC ±10%.

Installation site: Side mirrors

Mounting height: 2.0 meters ~2.5 meters

It must work with the Mobile DVR with such BSD algorithm module.

Blind Spot Detection (BSD) introduction Picture14

Blind Spot Detection (BSD) introduction Picture15

2. The Visual-audible buzzer with illumination (IP66)

Blind Spot Detection (BSD) introduction Picture16

It must work with the BSD cameras.

(IP66, RS485,12V, 5PIN Around aviation G25 connector)
