Use Cluster to WIFI download

2020-04-29 FAQ 218 views shaofu

First, you need to make sure your main server mysql can remote access, you can follow this link to open it.

https://www.icarvisions.com/faq/ivmsserver-mysql-enable-remote-access-340.html


1. The main Server.

  • Log in the user of admin and add a new download site. (The download site is unique).


Use Cluster to WIFI download Picture1


  • Add WIFI download Server. (Set your IP correct).


Use Cluster to WIFI download Picture2

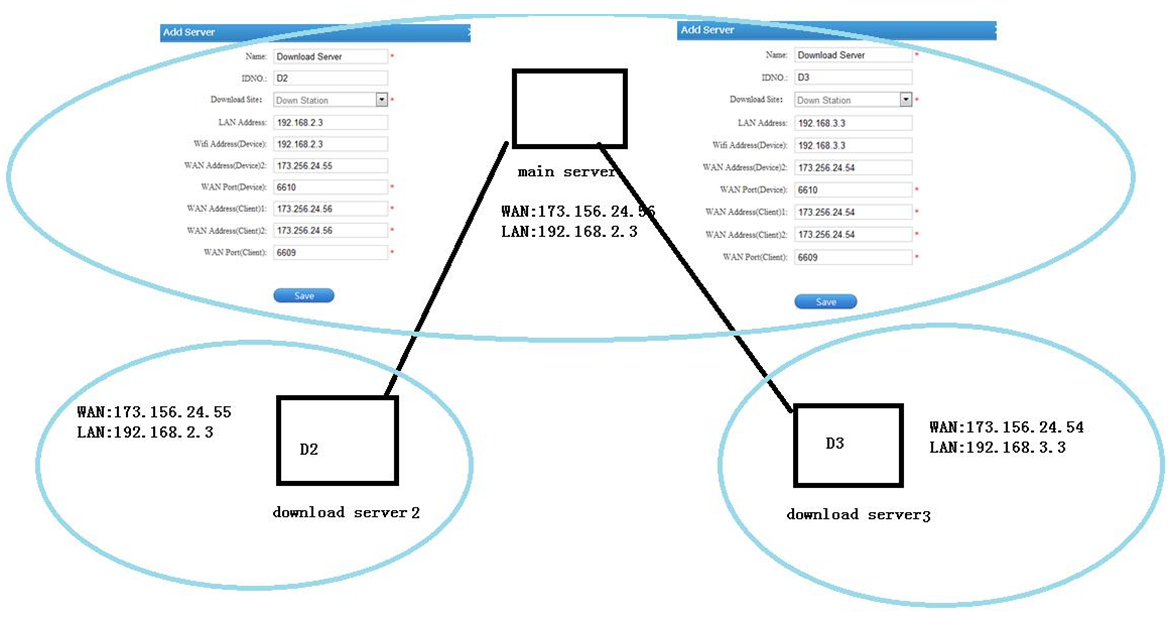

  • If your server did map port (6601-6612) and the new WIFI download server in the same LAN, you need to map the 6610&6609 ports to the IP of WIFI download server. If the main server and WIFI download server in different network, you need to set “LAN Address, WIFI Address(Device), Address(Device)2” according to WIFI download server.


Use Cluster to WIFI download Picture3


  • Stop the WIFI server on the main server. If you main server need to be used to a download server you can keep the main download server running.


Use Cluster to WIFI download Picture4


2. New WIFI download server.

  • Stop other services. As the picture shows, then set download server.


Use Cluster to WIFI download Picture5

Use Cluster to WIFI download Picture6


  • If your WIFI download server in the LAN, you need to do a map port (6609, 6610). If the download server and main server in different network, you need set the WAN IP at “Login Server IP”.


3. Set WIFI download plan on the main server. Log in the second level user. (admin is the first level, your 24102014 is the second level.)


Use Cluster to WIFI download Picture7


4. Set successful.


Use Cluster to WIFI download Picture8

FAQ DOWNLOAD

Use Cluster to WIFI download Picture9Use Cluster to WIFI download.docx
