4G Mobile DVR for Vehicles Tracking and Monitoring

TABLE OF CONTENTS

Mobile DVR Model Product Features
Product Specification Product Description
Are You Always Wondering Achieve Remote Monitoring
Accessories Order Model
Application Scenario Spec Sheet Download


4G Mobile DVR for Vehicles Tracking and Monitoring Picture1


Mobile DVR Model: JH4-HD-GFW V2 (GPS+4G+WIFI)

Product Features

  • Support 4CH 1080P AHD or 4CH 960H / D1 / HD1 / CIF + 1CH IPC (720P / 1080P) , Can connect & record up to (5) five cameras simultaneously

  • VGA Video Output

  • Built-in 1 x POE(12V) Ethernet Port

  • accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)

  • Internal G-Sensor, with GPS,4G and  Wi-Fi (5.8 Ghz)

  • 2 WIFI Antennas (download speed up to 3Mb/s)

  • Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)

  • Hard drive automatic heating startup in cold weather

  • On board UPS 8 seconds delay power-off for data protection

  • Operating temperature -40℃ ~ +80℃

  • 8V-36V wide voltage power supply


4G Mobile DVR for Vehicles Tracking and Monitoring Picture2

Product Specification

Model
JH4-HD-GFW V2
System
Language English  / Chinese
Operation Interface Graphical User Interface(OSD menu)
Password Security 2 Levels: Administrator or User
Video
Video Input Supports 4 channels 1080P AHD camera Video input
Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Supports 2-CH 1080P AHD + 2-CH 720P AHD mixing Video input
Supports 2-CH 1080P AHD + 2-CH 960H analog mixing Video input
Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input
Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input
Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input
Video Output 3 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port & VGA 1080P)
Video Display Single picture, 1~5 pictures
Signal System PAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame 1080P/sec )
Image Compression H.264 Main profile
Audio
Audio Input 4 Channels
Audio Output 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Record Format Synchronized A/V recording
Recording & Storage
Image Resolution  CIF / HD1 / D1 / 960H / 720P / 1080P optional
Video Coding ISO14496-10 Industry Standard
Video Bit Rate CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H:  2048Kbps ~ 400Kbps,
720P: 4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate 40Kbps
Storage Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm
Alarm Input 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output 1 Channel, 12V output
Communication Ports
RS485 1 Port for PTZ control or Data Device usage
RS232 2 Port for communication or data usage
RJ45 Network 1 Port of RJ45, For connection to an IP camera with maximum of 1080P
USB 2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional.
Wireless Communication*
3G* 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G* 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi* Internal Wi-Fi ( 2.4 / 5.8 Ghz) optional
GPS*
Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS Wireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely Upgrade through the front USB 2.0 or remotely via IVMS platform
Voltage Input
+8V~+36V 8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V 12V (+/-0.2V) , Max 3A
ACC Detection
≤4V Power-off
≥6V Power-on
Video Input Resistance
75Ω 75Ω
Video Output Voltage
2Vp-p 2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port
<1V  Low voltage trigger
>5V  High voltage trigger
Operational Temperature
-40℃~80℃ Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x61mm Including Security Cover 248x184x61mm

Product Description

The JH4-HD-GFW V2 is a mobile DVR designed for on-board vehicle recording. It has four ports to record up to four cameras simultaneously and an ethernet port to connect a forward-facing IP camera. The system comes with GPS to record the vehicle location and driving route as well. Footage records onto an included 2TB hard disk with backup recording (128GB) onto 1 SD card. With a solid and compact build, the JH4-HD-GFW V2 is vibration-proof, installation-friendly and combines powerful functions together with a stable performance.


Select the GPS+WiFi option to upgrade to live video remote viewing. This allows the DVR to connect to a WiFi hotspot in your vehicle. This model is compatible with jetpacks from all major carriers. Perfect for fleet tracking (can be used as a GPS tracker) and fleet management this DVR allows you to easily view and download footage even while the vehicle is on the road!


The GPS+WiFi+4G option allows the user to use a SIM Card for live remote viewing. This model can also be connected to a WiFi hotspot.


4G Mobile DVR for Vehicles Tracking and Monitoring Picture3

Are You Always Wondering...

How to get a perfect fleet management solution?

How to quickly know whether the driver drives illegally?

How to quickly provide evidence for traffic accident, theft, racketeering, etc.?

......


4G Mobile DVR for Vehicles Tracking and Monitoring Picture4

Icarvisions's Vehicle Mobile DVR System can solve your worries!

4G Mobile DVR for Vehicles Tracking and Monitoring Picture5

Achieve remote monitoring by Vehicle Mobile DVR GPS/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

The vehicle DVR system Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions.


Such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc.


APP <icarview> is available for mobile phones in Android and iOS system. Click here to learn more about Client Software IVMS (Intelligent Vehicle Management Software).


4G Mobile DVR for Vehicles Tracking and Monitoring Picture6

Accessories

4G Mobile DVR For Vehicles:

4G Mobile DVR for Vehicles Tracking and Monitoring Picture7

4G Mobile DVR of Camera:

4G Mobile DVR for Vehicles Tracking and Monitoring Picture8

Order model

  • with 3G / 4G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking.

  • 3G / 4G: For real-time video and monitoring.

  • Wi-Fi: For automatically downloading video file.

  • Order Model Description ( Module optional )
    JH4-HD-GFW GPS+4G+WiFi
    JH4-HD-GFN GPS+4G
    JH4-HD-GWW GPS+3G+WiFi
    JH4-HD-GWN GPS+3G
    JH4-HD-GNW V2 GPS+WIFI
    JH4-HD-GWW V2 GPS+3G+WIFI
    JH4-HD-GNN V2 GPS
    JH4-HD-GNW GPS+WiFi
    JH4-HD-NNN V2 Recording Only
    JH4-HD-NNN Recording Only
    JH4-HD-GWN V2 GPS+3G
    JH4-HD-GFN V2 GPS+4G
    JH4-HD-GNN GPS
    JH4-HD-GFW V2 GPS+4G+WIFI

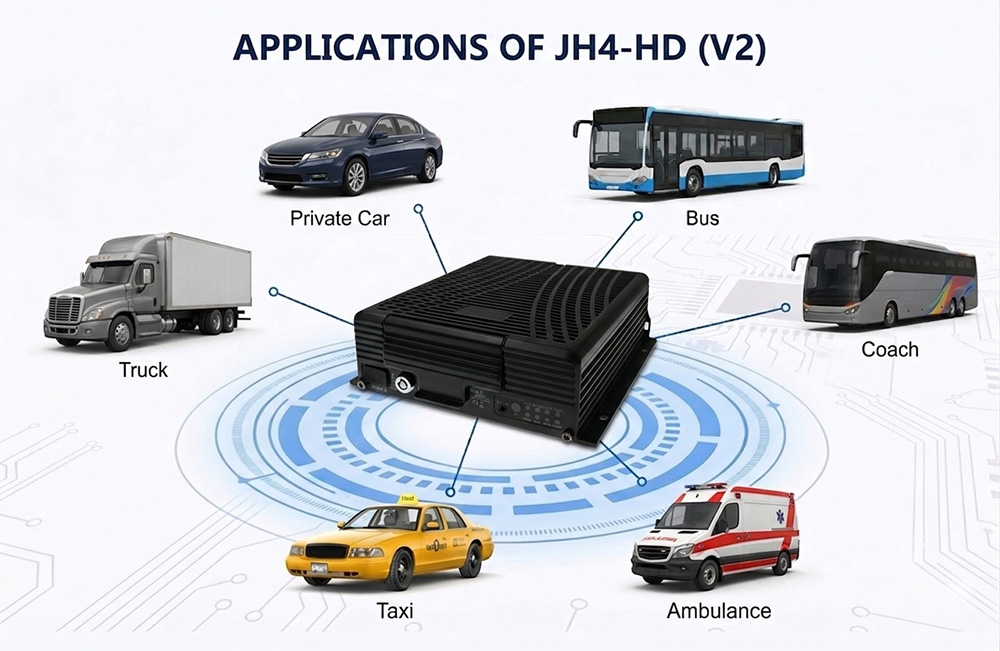

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

    It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:car,ambulance,police-car,School Bus,taxi,truck,etc.

    Spec Sheet Download

  • Title Type Download
    JH4-HD V2 Mobile DVR Spec Sheet pdf
