8CH GPS Mobile DVR for fleet management online

8CH GPS Mobile DVR for fleet management online

Product Video:

8CH GPS Mobile DVR for fleet management online Picture2

Mobile DVR Model: JH8-HD-GNN (GPS)

Product Features:

  • 8 x 720P AHD / 960H / D1 / HD1 / CIF +1x IPC(720P/1080P )Video input, support 960P AHD camera

  • VGA Video Output

  • accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)

  • Internal G-Sensor, with GPS

  • Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)

  • Hard drive automatic heating startup in cold weather

  • On board UPS 8 seconds delay power-off for data protection

  • Operating temperature -40℃ ~ +80℃

  • 8V-36V wide voltage power supply


8CH GPS Mobile DVR for fleet management online Picture1

Product Specification

Model
JH8-HD-GNN
System
Language English  / Chinese
Operation Interface Graphical User Interface(OSD menu)
Password Security 2 Levels: Administrator or User
Video
Video Input Supports 8 channels CIF/HD1/D1/960H camera Video input
Supports 8 channels 720P AHD camera Video input
Supports 4-CH 720P AHD + 4-CH 960H analog mixing Video input
Supports 1-CH 720P/1080P IPC + 8-CH 960H/D1/CIF Video input
Supports 1-CH 720P/1080P IPC + 8-CH 720P AHD Video input
Video Output 2 CVBS (Analog); 1 each 3.5mm Jack on Front Panel and one connection on the 24 pin I/O port
Video Display Single picture, 1~8 pictures
Signal System PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec )
Audio
Audio Input 8 Channels
Audio Output 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
Record Format Synchronized A/V recording
Recording & Storage
Image Resolution  CIF / HD1 / D1 / 960H / 720P optional
Video Coding ISO14496-10 Industry Standard
Video Bit Rate CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H:  2048Kbps ~ 400Kbps,
720P: 4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate 40Kbps
Storage Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm
Alarm Input 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output 1 Channel, 12V output
Communication Ports
RS485 1 Port for PTZ control or Data Device usage
RS232 2 Port for communication or data usage
RJ45 Network 1 Port of RJ45, For connection to LAN or testing etc
USB 2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional.
Wireless Communication*
3G* 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G* 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi* Internal Wi-Fi ( 2.4 / 5.8 Ghz) optional
GPS*
Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS Wireless  (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely Upgrade through the front USB 2.0 or remotely via IVMS platform
Voltage Input
+8V~+36V 8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V 12V (+/-0.2V) , Max 3A
ACC Detection
≤4V Power-off
≥6V Power-on
Video Input Resistance
75Ω 75Ω
Video Output Voltage
2Vp-p 2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O Port
<1V  Low voltage trigger
>5V  High voltage trigger
Operational Temperature
-40℃~80℃ Install  in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x61mm Including Security Cover 248x184x61mm

Product Description

Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with Car Cameras used for vehicle monitoring in bus, taxi, school bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with Client Software IVMS (Intelligent Vehicle Management Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, alarms customized , driving route record, PTZ control, fuel volume detection, video search and download, generating reports, etc. APP <icarview> is available for mobile phones in Android and iOS system.


8CH GPS Mobile DVR for fleet management online Picture2

Order model

  • with 3G / 4G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking

  • 3G / 4G: For real-time video and monitoring

  • Wi-Fi: For automatically downloading video file

8CH GPS Mobile DVR for fleet management online Picture3

  • Order Model Description ( Module optional )
    JH8-HD-GFW GPS+4G+WIFI
    JH8-HD-GWW GPS+3G+WIFI
    JH8-HD-GFN GPS+4G
    JH8-HD-GWN GPS+3G
    JH8-HD-GNW GPS+WIFI
    JH8-HD-GNN GPS
    JH8-HD-NNN Recording Only

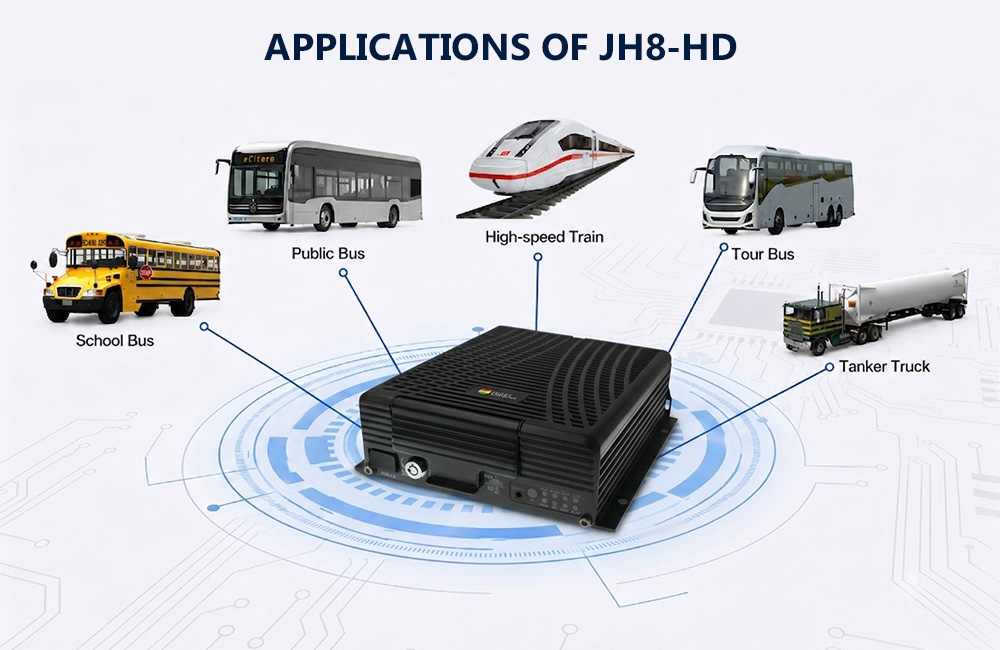

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:

    It’s designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

    Our rugged, high quality mobile DVRs are ideal for monitoring a wide range of vehicles:car,ambulance,police-car,School Bus,taxi,truck,etc.

    Spec Sheet Download

  • Title Type Download
    JH8-HD Mobile DVR Spec Sheet pdf
