Public buses, being a major part of public transportation system, is closely related to the safety of the people’s lives and the development and stability of the social economy. Nowadays it is also a public social security issue that is highly valued. We ICarVisions, based on more than a decade of experience in developing and implementing video surveillance for public transportation, have developed a wide series of powerful solutions that can solve many potential issues which had troubled the fleet operators, drivers, and passengers, to offer a more secure, more efficient and more profits environment for the whole society.

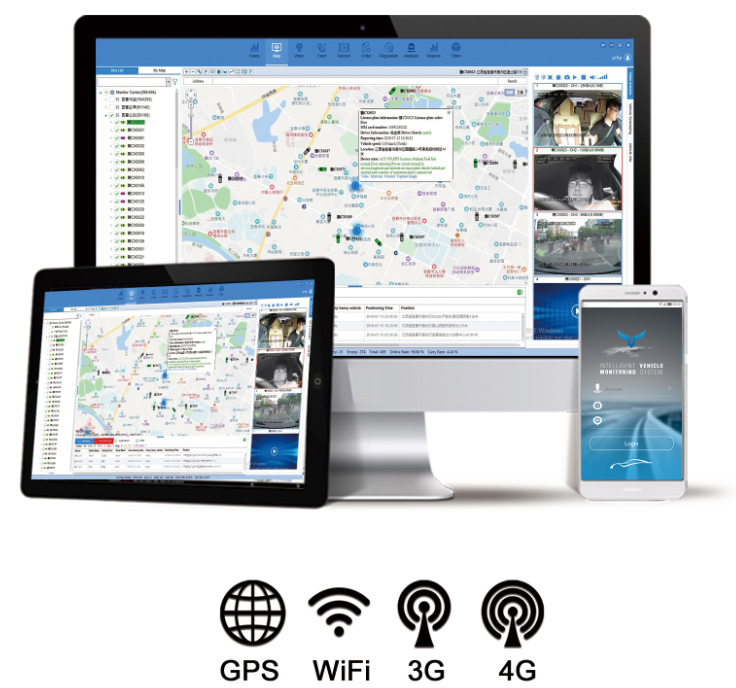

Case Study: Public Transit Bus Picture1

What challenges our mass transit solutions can solve?

  • Support all-around real-time monitoring with up to 8 cameras to ensure passenger safety.

  • Monitor abnormal driving behaviors such as driver fatigue and distraction, issuing timely warnings to prevent accidents.

  • Advanced Passenger Counter Cameras accuracy rate > 98%, for the number of passengers boarding and alighting the BUS, supporting 1-3 doors.

  • Simplify management with comprehensive data reports and analysis. Optimize operations to enhance efficiency and save costs.

Case Study: Public Transit Bus Picture2

Public bus surveillance solution

Mass Transit Solution System Device Layout

Case Study: Public Transit Bus Picture3

Real Case Installation Photos

Case Study: Public Transit Bus Picture4

How does the system work?

Case Study: Public Transit Bus Picture5

  • Real-time data from recorder installed on each vehicle will be transmitted to the central server system via 3G/4G when the bus is running on the road. People can have access to the recorder real-time data remotely via the Intelligent Vehicle Monitoring System (IVMS) platform and App.

  • The central server ( including the WiFi downloading server where the recorded files will be uploaded ) is installed at the facility where the vehicles return and park overnight. And a wireless network is set up at this place which has configured to connect to the central server and provide access points in the bus lot.

  • When a vehicle returns to the facility and is in the wireless network range, the Wi-Fi radios on each vehicle automatically connect to the access points - directly transmitting any scheduled, automatic event-based, or end-user requested video contents to the WiFi downloading server wirelessly and cost-effectively.

Computers connected to the server via Cellular/Wi-Fi and using the IVMS client software or MDVRPlayer playback software can quickly and easily search the video database on selected criteria. Besides the basic video contents, end-users can also get extensive email alerts and MDVR system reports like the mileage report, alarm reports speed report, etc., recorder health reports based on the operator’s requested.

Solution Details

JH8-HD V2 Series: 8 Channel Hard Disk Mobile DVR

Case Study: Public Transit Bus Picture6

Key Features

  • 8x 720P AHD / Analog cameras + 1 x 1080P IP camera Input, totally 9 channels Input

  • Store up to 2TBs of high definition recorded video

  • One 128GB SD card slot for backup

  • Internal G-sensor to detect vehicle collision or crash accident

  • GPS, 3G /4G, dual 5.8Ghz Wi-Fi antenna optional

  • A built-in VGA port for higher definition video output

  • Standard Ethernet Port for one extra IP camera or network connection

  • 8 x alarm IO ports, 2 x RS232 ports, 1 x RS485 port and 2 x USB ports

  • 8V ~ 36V wide voltage power supply, compatible with all kinds of vehicle power.

Case Study: Public Transit Bus Picture7

AHD Series Cameras


  • Super mini front view camera with dust-proof design

  • 1.3Megapixel 960P AHD high resolution

  • 2.8mm lens, horizontal angle of view 92°

  • Support D-WDR technology

  • Vibration-proof and tamper-resistant enclosure

  • Easy installation with a solid 3M sticker

Case Study: Public Transit Bus Picture8


  • Metal-cased mini housing internal camera

  • 1.3Megapxiel 960P AHD High resolution

  • 2.8mm /3.6mm lens optional with 12pcs IR LED

  • Support IR cut and infrared LEDs to record day & night image

  • Vibration-proof and tamper-resistant enclosure

  • Easy installation to ceiling or wall

Case Study: Public Transit Bus Picture9


  • Metal-cased IP67 waterproof back up camera

  • 1.3Megapixel 960P AHD High resolution

  • 3.6mm lens with a wide field of view

  • Support IR cut and infrared LEDs to record day & night image

  • Heating and anti-fog with hardened tempered glass

  • Vibration-proof and heavy-duty rugged housing

Case Study: Public Transit Bus Picture10


  • Metal-cased IP67 double-layer of aluminum alloy for double insulation

  • 1.3Megapxiel 960P AHD high resolution

  • Mirror optional

  • Innovative design with 2.1mm lens and 2.8mm lens optional without dark corner

  • Side camera with 2.8mm lens to offer 92°view angle

  • Rearview back up camera with 2.1mm lens to offer >120°view angle

  • Ultra-clear and bright image in night vision with laser lights, IR range >20meters

  • Support D-WDR technology

  • Vibration-proof and tamper-resistant enclosure

  • Easy installation to ceiling or wall

Case Study: Public Transit Bus Picture11

Case Study: Public Transit Bus Picture12

System Accessories

Case Study: Public Transit Bus Picture13

Software System

Recording Playback Software

ICarVisions’ mobile DVR system saves recordings with their private protocol so the recording files can only be played back by MDVRPlayer software which developed by their own RnD team. After log in the software with a correct account name and password, then you will be able to playback the recordings, along with the vehicle GPS tracking history on the map.

Case Study: Public Transit Bus Picture14

Besides the basic playing back recording function, other main features of this software support:

  • Merge and split recording files according to your own needs;

  • Converter the original special AVI format to standard AVI /MP4 format;

  • Choose single or multiple channels to faster / slow-off browse videos.

Case Study: Public Transit Bus Picture15

IVMS ( Intelligent Vehicle Management Software )

The newest IVMS V7 software system is designed and developed by our ICarVisions RnD team independently with our own complete independent intellectual property rights, which includes the new IVMS server software, new IVMS V7 PC, and web platform.

The IVMS server system consists of several cluster sub-servers, they are login server, gateway server, streaming media server, user server, WiFi download server, storage server, database server, and the web server.

Case Study: Public Transit Bus Picture16

The IVMS cluster server system is designed for providing constant and uninterrupted application service for users to access to server-based resources in case any sub-server failed and the other sub-server server programs can continue working well without any affecting.

Case Study: Public Transit Bus Picture17

IVMS V7 PC client, web client, and mobile application are designed to enable users to have access to vehicle real-time video and tracking data 24/7/365 from mobile DVR system directly and easily.

Case Study: Public Transit Bus Picture18

Besides the basic function to provide real-time video and audio, the IVMS platform can also support other multiple features and functions:

Case Study: Public Transit Bus Picture19

More importantly, all the software will be provided for users as free, and they can also enjoy lifetime server license maintenance service and software upgrading service.

Examples of IVMS Client Snapshots

IVMS Web client

IVMS Web client currently is compatible with Chrome and Mozilla Firefox browser.

Case Study: Public Transit Bus Picture20

IVMS V7 PC Client

IVMS V7 PC client currently is compatible with Windows 7 and higher ( 32bit /64bit) version computer system.

Case Study: Public Transit Bus Picture21
