4 channel AI MDVR for Vehicle Support 4G 5G WiFi

Model: JH4AN-HD

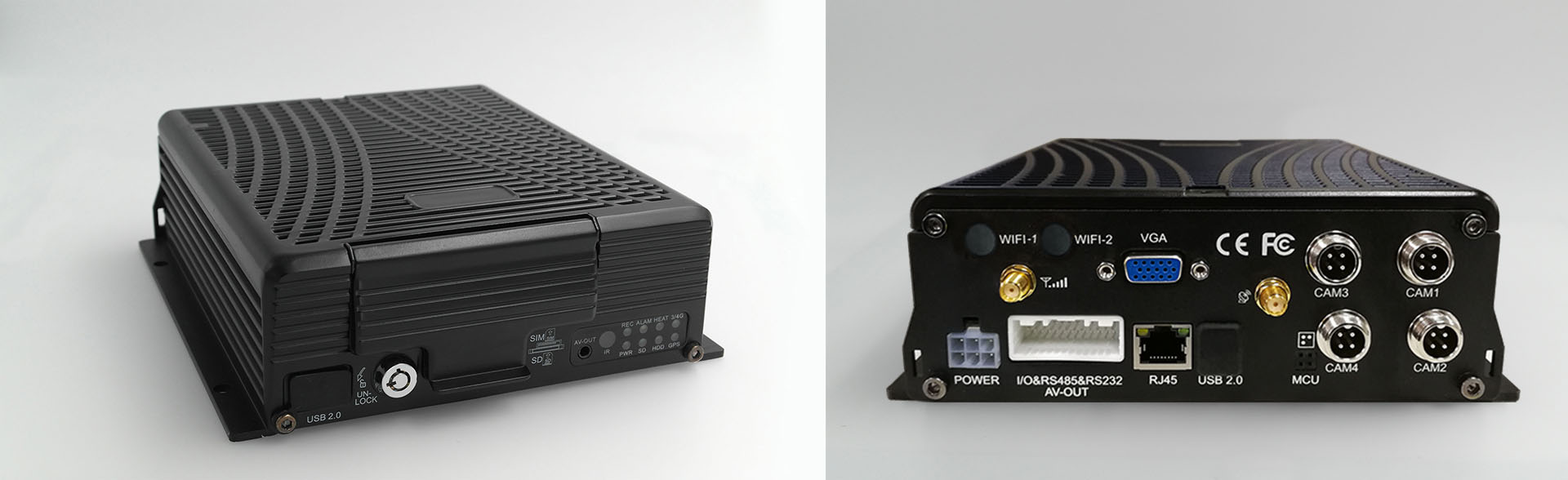

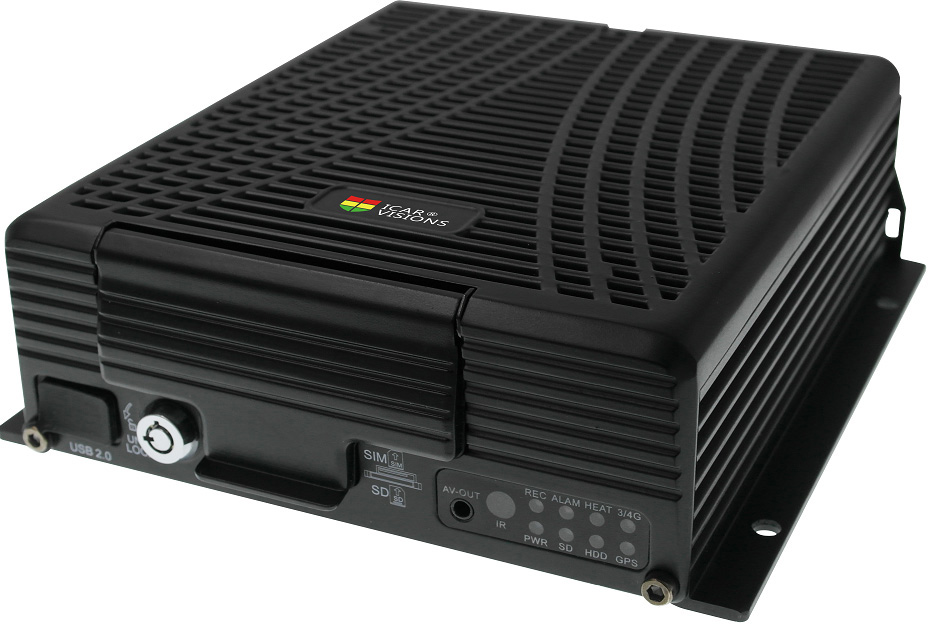

JH4AN-HD MDVR

Model: JH4AN-HD (GPS+4G/5G+WiFi)

Product Description

The JH4AN-HD is a 4 Channel AI MDVR designed for on-board vehicle recording. The MDVR supports AI (ADAS & DSM &BSD). It has four ports to record up to four cameras simultaneously and an ethernet port to connect a forward-facing IP camera. The system comes with GPS to record the vehicle location and driving route as well. Footage records onto an included 4TB hard disk with backup recording (512GB) onto 1 SD card. The MDVR is equipped with an anti-shock vibration resistant chassis that is built to endure the rigorous bumps and turns of mobile surveillance applications, to ensure high quality video on-the-go.

JH4AN-HD MDVR 5G

This remote viewable Mobile DVR makes use of cellular 4G/5G data networks and Wi-Fi hotspots, via a SIM card and Ethernet connections for remote monitoring of live audio and live and recorded video. The DVR enables you to quickly determine GPS location with the Google maps interface, and offers camera control, while the built-in Wi-Fi client provides convenient wireless offloading of video evidence to an optional server.

4 Channel AI Mobile DVR JH4AN-HD

Related solutions

Vehicle monitoring System Solution For Coach/Tour bus

Order model

  • with 4G / 5G, GPS, WiFi modules optional, according to different demands.

  • GPS: For map, location and route tracking

  • 4G / 5G: For real-time video and monitoring

  • Wi-Fi: For automatically downloading video file

Order Model Description ( Module optional )
JH4AN-GFW GPS+4G+WIFI
JH4AN-GFW (5G) GPS+5G+WIFI
JH4AN-GFN GPS+4G
JH4AN-GFN (5G) GPS+5G
JH4AN-GNW GPS+WIFI
JH4AN-GNN GPS
JH4AN-NNN Recording Only

  • Auto detecting & matching for all analog cameras

  • Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 2 channels 1080P AHD  / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

  • Option2: 4 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input

  • Support ADAS+DSM (optional)

  • Support Blind Spot Detection cameras (optional)

  • Accept HDD/SSD up to 4 TB Storage, and 1 SD card (up to 512GB) for backup(at 4G/5G/WiFi model option)

  • Support GPS, 4G, 5G and Wi-Fi (5.8 Ghz)

  • Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering

  • WIFI  automatic download

  • Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard )

  • Hard drive automatic heating startup in -40℃ weather

  • On board UPS 8 seconds delay power-off for data protection

  • Operating temperature -40℃ ~ +80℃

  • 8V-36V wide voltage power supply

JH4AN-HD MDVR Features


Why do we need this AI 4CH HDD MDVR from ICARVISIONS?

Have you ever been troubled by these questions?

  • Where can you find the ideal fleet management solution?

  • How to monitor anomalies in people, vehicles, and roads?

  • How to quickly provide evidence when accidents or theft occur?

......

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture1

ICARVISIONS AI 4-channel HDD MDVR, multiple optional features, solves your worries!

This MDVR includes algorithms like ADAS, DSM, and BSD. Its primary goal is to provide reliable vehicle management solutions for various types of vehicles, including heavy-duty truck, cold-chain truck, garbage truck, private vehicle, ambulance, tour bus, fire truck, tanker truck, and more. It ensures both customer safety and significantly enhances operational efficiency.

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture2

1. ADAS (Advanced Driver Assistance System)  & DSM (Driver Status Monitor) Function

The driver assistance safety warning system, built upon cutting-edge deep learning technology, combines forward collision prevention alerts with driver behavior monitoring to reduce traffic accidents and potentially save lives for the fleet.

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture3

In the event that the forward-facing ADAS camera identifies potential collision risks with vehicles or pedestrians ahead, insufficient following distance, or lane deviation, the ADAS system will use warning sounds to remind the driver to take timely measures.

ICARVISIONS and Anti-speeding technology: ADAS

With the internal-view DSM (Driver Status Monitor) camera, it is possible to detect and signal driver fatigue, distracted driving, including activities like smoking and making phone calls, and other irregular driving behaviors. This feature enhances safe driving and streamlines fleet management.

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture4

In addition, the driver's driving condition will be uploaded to the IVMS (Intelligent Vehicle Monitoring System) software platform in the form of video, allowing management personnel to view it remotely, provide timely reminders to the driver, and take further measures such as training to strengthen management and reduce the probability of accidents.



ICARVISIONS Anti-speeding technology: Driver Status Monitoring

2. BSD (Blind Spot Detection) Function

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture5

When the BSD (Blind Spot Detection) blind spot monitoring camera detects potential collision risks in the front or right blind spots, the AI intelligent algorithm within the device's host analyzes the alert level (Level 1, Level 2, Level 3) and alerts the driver with warning sounds to take timely action.

Anti-speeding technology - The Blind Spot Detection

3. IVMS Software Platform

When ADAS, DSM, or BSD warning events are triggered, it is possible to directly upload images or videos of the critical moments to the platform through terminal devices. This not only helps reduce traffic accident rates but also enables drivers to conduct in-depth analysis of warning data, thereby enhancing the operational efficiency of the fleet.

4 channel AI MDVR for Vehicle Support 4G 5G WiFi Picture6

JH4AN-HD Spec Sheet
PDF
Excel
Excel

Packaging box accessories

JH4AN-HD Packaging box accessories

Other accessories (optional)

JH4AN-HD Other accessories (optional)
